74 hp
Horsepower
9936 lb
Operating Weight
232 in
Lift Height
Bobcat TL519 Telehandler Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Specifications
Horsepower 74 hp
Rated Capacity 5512 lb
Lift Height 232 in
Auxiliary Std Flow 21.1 gal/min
Performance
Travel Speed - High 17 mph
Travel Speed - Low 4.3 mph
Rated Capacity 5512 lb
Lift Height 232 in
Lift Height @ Rated Capacity 248 in
Bucket Breakout Force 9,723 lbf
Max Draw Bar Pull 6744 lb
Boom Breakout Force 6,744 lbf
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 74 hp
Displacement 146 in³
Turbocharged Engine yes
Dimensions
Length 205 in
Length Fork Heel To Rear 157 in
Width 72.1 in
Height 76 in
Height with Operator Cab 76 in
Cab Height with Beacon 82.1 in
Wheelbase 92.9 in

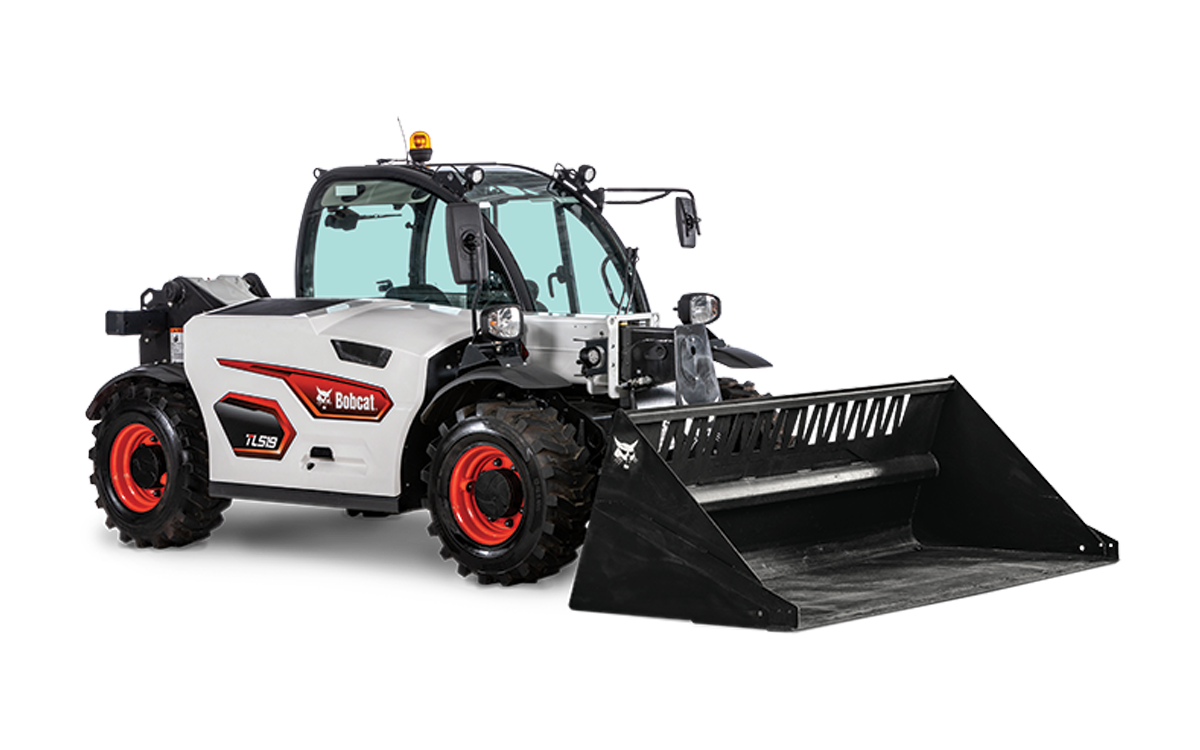

Bobcat TL519 Telehandler
