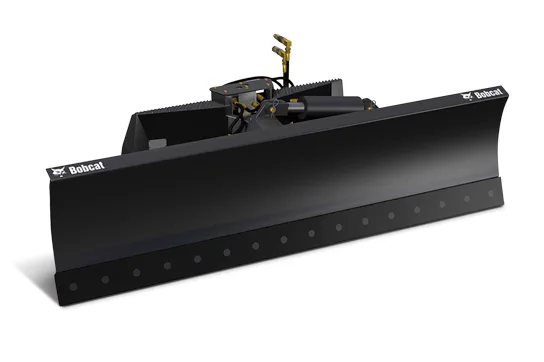

Bobcat Dozer Blade Attachment

Browse specs and more for the Bobcat Dozer Blade Attachment - Bobcat of Huntsville
  • Excavates and grades material with optimum performance and durability
  • Turns loaders into mini-crawlers; ideal for construction and landscaping markets
  • Move large amounts of material quickly and easily – no dedicated equipment required
  • Adjustable skid shoes provide depth control as well as forward and reverse grading action
8 deg - 10 deg Oscillation
33 in Length
30 +/- deg Angle

Call Your Local Bobcat of Huntsville Location For Availability.

Compatibility

Works With These Bobcat Machines

Compact Track Loaders

T64-2 T66-2 T76-2 T86-2 T450 T595 T650 T770

Skid-Steer Loaders

S64-2 S66-2 S76-2 S86-2 S450 S590 S650 S770

Telehandlers

TL519

Toolcat Utility Work Machines

UW53 UW56
Specifications

Bobcat Dozer Blade Attachment Specs

** Listed specs are for reference. Actual specs may vary by model and configuration. **

Oscillation 8 deg - 10 deg
Length 33 in
Angle 30 +/- deg
Blade Height 24 in - 25 in
Cutting Edge Width (reversible) 0.5 in
Cutting Edge Length (reversible) 6 in
Cylinders No
Skid Shoes No
Operating Weight 950 lbs - 1580 lbs
Working Width (Fully Angled) 69.3 in - 83.5 in
Width 80 in - 96 in
Height 24.9 in - 27.7 in
Cutting Edge (reversible) 0.5" x 6"
Why Choose the Bobcat Dozer Blade Attachment

Bobcat Dozer Blade Attachment Features

6-Way Adjustable Blade

The dozer blade angles +/- 30 degrees and oscillates up to +/– 10 degrees, with electric-over-hydraulic controls for on-the-fly adjustments.

Adjustable Depth Guides

Mounted on the dozer blade attachment, adjustable skid shoes guide and control the depth of the dozer blade.

Bi-Directional Operation

The dozer blade can be operated both in forward and reverse for optimum grading action direction.

Cast Design

Designed for handling the toughest applications, the 96-inch dozer blade features an all-cast design for maximum strength. It quickly becomes a dozing machine when combined with the tractive effort of a compact track loader.

Fingertip Control

Featured on the 80-inch through 96-inch models, fingertip controls allow for easy, efficient and comfortable attachment adjustment

Reversible Cutting Edge

The reversible cutting edge increases the versatility of the attachment while providing better uptime protection and more time between blade exchanges.
