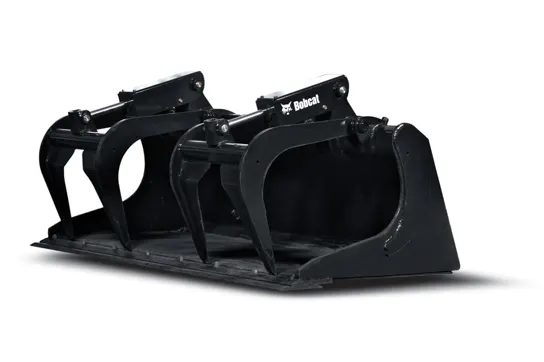

Bobcat Industrial Grapple Attachment

Browse specs and more for the Bobcat Industrial Grapple Attachment - Bobcat of Huntsville
  • Built for maximum power and reliability
  • Delivers easy handling of bulky, hard-to-manage materials in the industrial or construction setting
  • The two-arm design on larger industrial grapples provides a strong, even biting force
  • Choose from a bucket or fork bottom for maximum load capability
  • Built for day-in, day-out duty to bite off the toughest jobs
32.2 in – 53.7 in Length
20.6 in – 80 in Grapple Width
1 - 2 Number of Grapple Tines

Call Your Local Bobcat of Huntsville Location For Availability.

Compatibility

Works With These Bobcat Machines

Compact Track Loaders

T64-2 T66-2 T76-2 T86-2 T450 T595 T650 T770

Compact Wheel Loaders

L65 L95

Large Wheel Loaders

L205 L235 L255 L285

Mini Track Loaders

MT100 MT120

Skid-Steer Loaders

S64-2 S66-2 S70 S76-2 S86-2 S450 S590 S650 S770

Small Articulated Loaders

L23 L28 L35

Telehandlers

TL519 TL623

Toolcat Utility Work Machines

UW53 UW56
Specifications

Bobcat Industrial Grapple Attachment Specs

** Listed specs are for reference. Actual specs may vary by model and configuration. **

Length 32.2 in – 53.7 in
Grapple Width 20.6 in – 80 in
Number of Grapple Tines 1 - 2
Operating Weight 364 lbs – 4432 lbs
Width 36 in – 107.9 in
Height 29.4 in – 48.6 in
Grapple Width 20.6 in – 80 in
Number of Grapple Tines 1 - 2
Open Height 41.3 in – 47.8 in
Closed Height 29.4 in – 34.2 in
Closed Length 32.2 in – 43.4 in
Why Choose the Bobcat Industrial Grapple Attachment

Bobcat Industrial Grapple Attachment Features

Dual Cylinders (Large Grapples Only)

Built with tough, dual cylinders, Bobcat grapples provide the highest clamping forces in the industry. Bobcat industrial grapples offer the force to handle stubborn materials and work faster.

Removable Hose Guide

The guide routes hoses when the grapple is attached, reducing exposure to snags and other hazards. Watch the design and quality video to see all of the Bobcat strengths.

Replaceable Cutting Edge (Bucket Grapples)

The replaceable cutting edge is standard equipment for bucket protection.

Replaceable Tapered Fork (Fork Grapples)

The forks allow for picking up larger materials while leaving valuable dirt behind. Additional forks can be added to narrow the space between fork tines.

Reinforced Tines

The tines are backed by more steel and greater reinforcement.

Open Grapple Design

The open grapple design provides superior visibility to the work area.

Greaseable Pivot Points

The greaseable pivot points provide long life for pins and bushings.

Inertia-Welded Cylinder Ends

As a Bobcat exclusive design, the inertia-welded cylinder ends deliver strong, smooth operation by improving hydraulic cushioning at the end of the stroke.
