Attachments & Implements

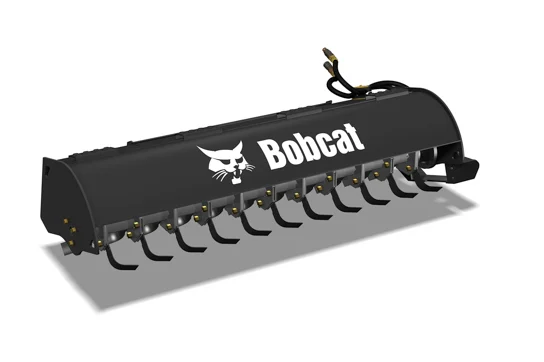

Bobcat Tiller Attachment

Browse specs and more for the Bobcat Tiller Attachment - Bobcat of Huntsville
  • Built for easy and efficient soil preparation, the tiller attachment quickly turns a backyard plot into a soil bed
  • Tear through clumps and hardened materials with the replaceable, double-edge tines
  • Bi-directional operation for top-cutting and under-cutting in either direction
  • Offset mounting allows for tilling next to sidewalks and buildings
25.5 in - 32.9 in Length
40.6 in - 75.4 in Working Width
Forward/Reverse Travel Direction

Call Your Local Bobcat of Huntsville Location For Availability.

Compatibility

Works With These Bobcat Machines

Compact Track Loaders

T64-2 T66-2 T76-2 T86-2 T450 T595 T650 T770

Compact Tractors

CT2025 CT2035 CT2040 CT4045 CT4050 CT4058 CT4545 CT4558 CT5545 CT5550 CT5555 CT5558

Compact Wheel Loaders

L65 L95

Mini Track Loaders

MT100 MT120

Skid-Steer Loaders

S64-2 S66-2 S70 S76-2 S86-2 S450 S590 S650 S770

Small Articulated Loaders

L23 L28 L35

Sub-Compact Tractors

CT1021 CT1025

Telehandlers

TL519

Toolcat Utility Work Machines

UW53 UW56

Utility Tractors

UT6066 UT6566 UT6573
How It Works

How the Bobcat Tiller Attachment Works

Tear through clumps and hardened materials with the replaceable, double-edge tines. Till and mix the soil with compost materials to prepare the ground. Built for easy and efficient soil preparation, the tiller attachment quickly turns a backyard plot into a soil bed for gardening. Bi-directional operation allows for top-cutting and under-cutting in either direction. Offset mounting even allows for tilling next to sidewalks and buildings, maximizing the versatility of tiller operation.

Specifications

Bobcat Tiller Attachment Specs

** Listed specs are for reference. Actual specs may vary by model and configuration. **

Length 25.5 in - 32.9 in
Working Width 40.6 in - 75.4 in
Travel Direction Forward/Reverse
Working Depth 6" - 7"
Flow Range Min 9 gpm - 17 gpm
Drive Direct Drive or 540 RPM with Slip Clutch Protection
Flow Range Max 18 gpm - 40 gpm
Tine Rotation 211 RPM @ 540 RPM PTO
Tines 24 - 44
Operating Weight 91 lbs – 800 lbs
Width 47.9 in – 89 in
Height 24.2 in – 30 in
Cutting Width 46.5 in – 82.4 in
Why Choose the Bobcat Tiller Attachment

Bobcat Tiller Attachment Features

Adjustable Skid Shoes

The attachments adjustable skid shoes deliver depth control for more precise tilling operation.

Bi-Directional Rotation

With bi-directional rotation, operators have the option of top-cutting and under-cutting when tilling in either direction, maximizing attachment versatility and increasing operating capabilities.

Replaceable Tines

Hardened for maximum soil penetration, the double-edge tines break through clumps and tear through materials to deliver loosened soil for ground preparation.

Offset Mounting

Offset mounting accommodates tilling next to sidewalks, curbs, and buildings, increasing the jobsite capabilities of the tiller attachment.

Direct-Drive, Hydraulic Motor

The direct-drive motor delivers necessary operating power while reducing overall maintenance costs, extending the life of the attachment and eliminating the need for high wear items such as gear boxes, chains, sprockets and sheer pins.

Bob-Tach® Mounting System

The Bob-Tach® mounting system turns any Bobcat® loader into a multi-job machine with a tight-fit attachment hook-up. Fast and easy attachment changes mean spending less time on maintenance and more time on the job.
