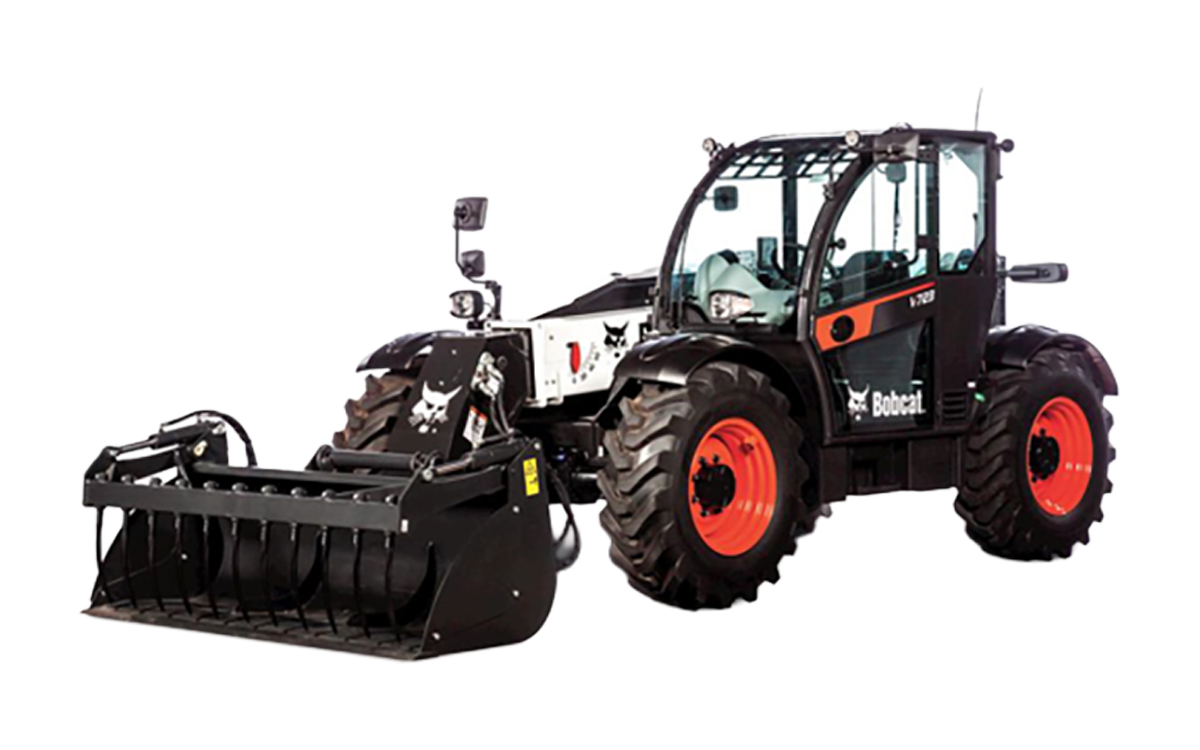

Bobcat TL723 Telehandler
Bring your toughest jobs within reach with the highly maneuverable and high-performing Bobcat® TL723 telehandler.
- The TL723 builds upon the Bobcat tradition of operator-centric design with optimal visibility, premium comfort, excellent ergonomics and easy-to-read, automotive-style instrumentation that Bobcat equipment operators will find familiar across R-Series machines.
- Precise drive and engine speed settings provide the ideal combination of attachment performance and machine control for a whole new level of operator efficiency and precision.
- The 100-hp Bobcat® Tier 4, turbocharged engine achieves optimum tractive force and gives the TL723 impressive pushing power in its size class
- Operators will also appreciate the Bobcat engine’s reliable cold weather starting and a variety of features that make maintenance and service more convenient.
- The TL723 offers leading maneuverability and a wide range of attachment options, making it the most versatile telescopic tool carrier in the 7,000-pound size class.
100 hp
Horsepower
16471 lb
Operating Weight
274 in
Lift Height
Telehandler Financing & Cash Rebates
As low as 0% for 36 months or up to $9,500 in lieu of financing. Offer ends June 30, 2026.
Bobcat TL723 Telehandler Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options **
Specifications
Horsepower 100 hp
Rated Capacity 7718 lb
Lift Height 274 in
Rated Capacity @ Full Height 7718 lb
Auxiliary Std Flow 26.4 gal/min
Auxiliary Pressure 3,626 psi
Hydrostatic Transmission Standard
Enclosed Operator Cab (ROPS/FOPS) Standard
Heater Air Conditioning Standard
Quick Tach System Not Applicable
Auxiliary Hydraulics Standard
Joystick Control Standard
Power Qtach Standard
Performance
Travel Speed - High 24.8 mph
Travel Speed - Low 3.7 mph
Rated Capacity 7718 lb
Lift Height 274 in
Lift Height @ Rated Capacity 274 in
Max Reach 157.6 in
Rated Capacity @ Full Height 7718 lb
Rated Capacity @ Max Reach 3308 lb
Bucket Breakout Force 13,938 lbf
Max Draw Bar Pull 15062 lb
Boom Breakout Force 8,093 lbf
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 100 hp
Displacement 207 in³
Turbocharged Engine yes
Dimensions
Length 239.1 in
Length Fork Heel To Rear 191.9 in
Width 90.6 in
Height 96.7 in
Height with Operator Cab 96.7 in
Cab Height with Beacon 101.9 in
Wheelbase 113 in
