Skid-Steer Loaders

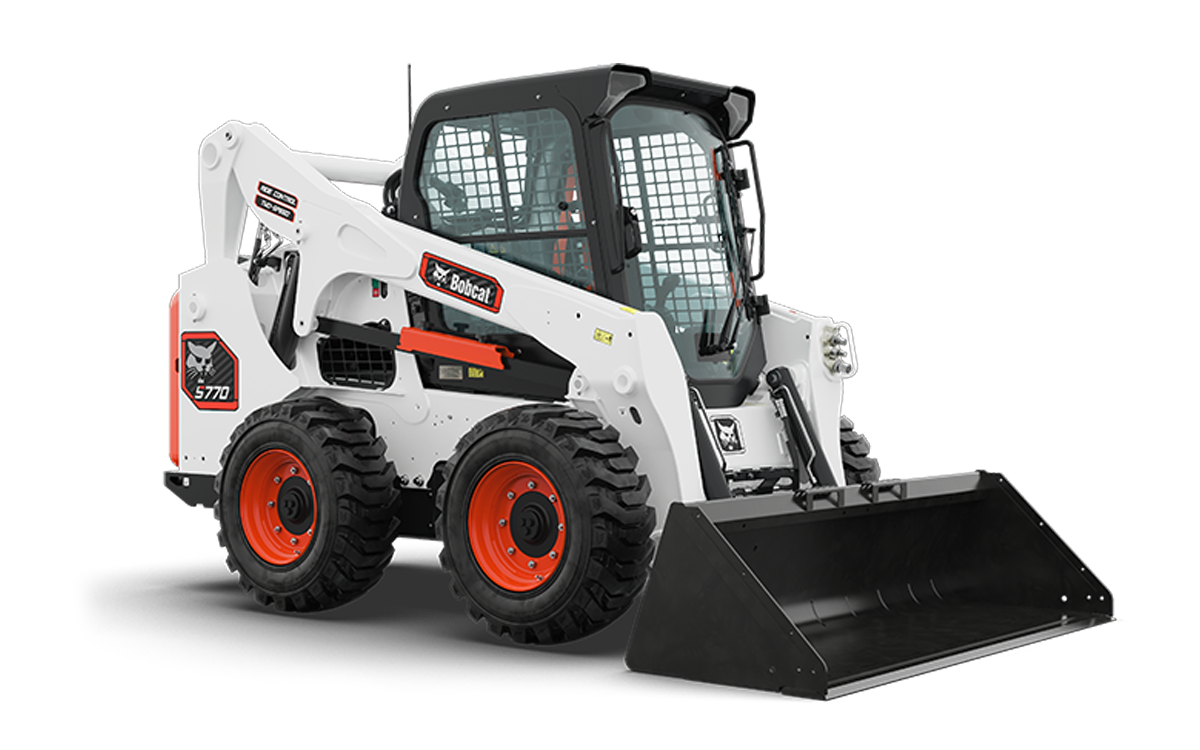

Bobcat Classic S770 Skid Steer Loader

This versatile machine delivers the proven reliability and performance you need to make light work of big projects, with powerful breakout forces and fast cycle times.
The pressurized cab is engineered for long days on the jobsite with low noise levels, easy-to-reach, intuitive controls and tall, wide windows that provide an optimal glass-surface area for high visibility.
Engineered to protect your uptime, the S770 features a non-DPF Bobcat engine, cold weather protection to prevent premature component wear, the Smart Cooling system for efficient operation in harsh working conditions, battery run-down protection, and design features that protect hoses, quick couplers and electronics.

You’ll power through your toughest jobsite challenges and accomplish more in less time with the quick and high-powered S770 skid steer loader. Do the work of an entire fleet of machines with the performance and attachment versatility built into one S770.

92 hp Horsepower

3,350 lb Operating Capacity

9,314 lb Operating Weight

Advertised Price Disclaimer: Any displayed prices are the Minimum Advertised Price (MAP) and may not reflect the final sales price. Current national promotions have been deducted from the MAP, but the actual sales price may vary depending on selected options or accessories. Please consult with our sales team for a personalized quote. Financing only available for 0% Down and Approved Credit.

Call Your Local Bobcat of Huntsville Location For Unit Availability.

Bobcat Classic S770 Skid Steer Loader Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options. **

Horsepower 92 hp

Rated Operating Capacity (ISO) 3,350 lb

Operating Weight 9314 lb

Auxiliary Std Flow 36.6 gal/min

Joystick Control Optional

Fuel Tank 23.9 gal

System Relief @ Quick Couplers 3,500 psi

Auxiliary Std Flow 23 gal/min

Auxiliary High Flow 36.6 gal/min

Joystick Control Optional

Air Conditioning Optional

Adjustable Seat Standard

Backup Alarm Standard

BICS System (Interlock) Standard

Cab Enclosure Optional

Sound Option Optional

Cab Heater Optional

Operating Lights Standard

Parking Brake Standard

Radio Optional

Rear Window Standard

Top Window Standard

Lift-Arm Support Standard

Seat Belt Standard

Suspension Seat Standard

Two Speed Travel Standard

Deluxe Instrumentation Optional

Engine Shutdown Standard

Hydraulic Bucket Positioning Optional

High Flow Option Optional

Auxiliary Hydraulics Standard

Spark Arrestor Muffler Standard

Bob-Tach Attachment System Standard

Power Bob-Tach Optional

ACS (Switchable Controls) Optional

Ride Control Optional

Rear Hydraulics Optional

Horn Standard

Rated Operating Capacity (ISO) 3,350 lb

Tipping Load 6700 lb

Operating Weight 9314 lb

Travel Speed 7.1 mph

Travel Speed (2-speed option) 12.3 mph

Emissions Tier (EPA) Tier 4

Engine Cooling Liquid

Engine Fuel Diesel

Horsepower 92 hp

Turbocharged Engine yes

Length 141.6 in

Length without Attachment 114.3 in

Length with Standard Bucket 141.6 in

Width 72.1 in

Width (with bucket) 74 in

Height 81.3 in

Height with Operator Cab 81.3 in

Height to Bucket Hinge Pin 131.4 in

Reach @ Maximum Height 33.6 in

Turning Radius 85.8 in

Wheelbase 48.3 in

Bobcat Classic S770 Skid Steer Loader Features

Powerful Hydraulics

Bobcat loaders are in a class by themselves. Each component – including the engine, pumps and hydraulic system – is engineered to deliver maximum hydraulic performance so you can work quicker, lift more and outperform your competition.

Increased Lifting Capabilities

R-Series loaders deliver increased lifting capabilities. The cast-steel lift arm sections are stronger to ensure optimal performance so you can handle more challenging jobs with greater confidence and ease.

Bobcat Engine

R-Series loaders feature a Bobcat engine that delivers the performance you need while reducing and simplifying routine maintenance. With the innovative new fuel system, low fuel levels are more forgiving for busy operators.

Effective Weight Balance

Bobcat skid-steer loaders offer effective turning and skidding, reduced fuel consumption and power requirements, increased drive train and tire life, and less wear and tear compared to "flat-footed" machines sold by other manufacturers.

Cooling System

The redesigned cooling system on R-Series loaders delivers optimal operation and maximum uptime. The system includes an optional reversible fan, heavy-duty steel louvered tailgate, larger hydraulic hoses and tubelines, increased fan size and high capacity radiator.

Premium Cab

Bobcat loaders offer a variety of comfort features including roomy cabs, heated air-ride seats, optional automatic heat and air conditioning, ergonomic controls, innovative instrumentation and more to keep you productive.

Touch Display

The most advanced in-cab display, optional on R-Series loaders, delivers detailed machine information to make operation efficient and productive. An integrated radio offers Bluetooth™ connectivity. It includes a durable, waterproof touchscreen.

Bob-Tach Attachment System

Change attachments quickly using the standard Bob-Tach® mounting system included with every loader. R-Series models include a stronger connection point and less debris buildup. Or upgrade to the optional Power Bob-Tach system for swapping non-hydraulic attachments without leaving your seat.

Selectable Joystick Control

No other joystick in the industry comes close to delivering the level of customization and control you'll find with SJC. It gives you all the capabilities of standard controls, along with additional functions that propel your productivity with better control of your loader and attachments.

Bobcat Classic S770 Skid Steer Loader
