Wheel Loaders

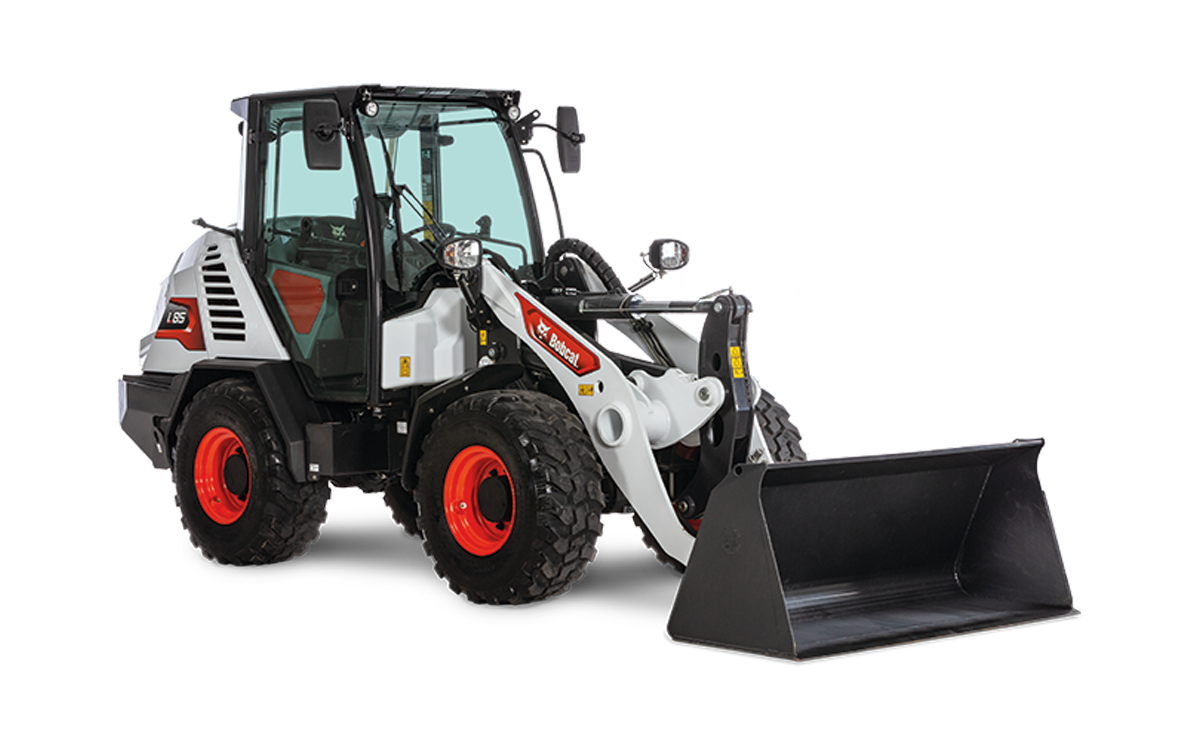

Bobcat L85 Compact Wheel Loader

If you have the will, the Bobcat® L85 compact wheel loader will provide the way with leading performance, maneuverability and versatility. With a high lift height and standard bucket capacities of up to 1-cubic yard, the L85 compact wheel loader excels at material-handling jobs and many other applications.

68 hp Horsepower

3,974 lb Operating Capacity

11,164 lb Operating Weight

Advertised Price Disclaimer: Any displayed prices are the Minimum Advertised Price (MAP) and may not reflect the final sales price. Current national promotions have been deducted from the MAP, but the actual sales price may vary depending on selected options or accessories. Please consult with our sales team for a personalized quote. Financing only available for 0% Down and Approved Credit.

Call Your Local Bobcat of Huntsville Location For Unit Availability.

Bobcat L85 Compact Wheel Loader Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options. **

Horsepower 68 hp

Rated Operating Capacity with Bucket (Straight) 3,974 lb

Rated Operating Capacity with Bucket (Articulated) 3,257 lb

Rated Operating Capacity with Forks (Straight) 4,786 lb

Rated Operating Capacity with Forks (Articulated) 3,977 lb

Operating Weight 11164 lb

Auxiliary Std Flow 19.8 gal/min

Auxiliary High Flow 27 gal/min

Pump Capacity 27 gal/min

Width (over tires) 70.9 in

Fuel Tank 20.8 gal

Auxiliary Std Flow 19.8 gal/min

Auxiliary High Flow 27 gal/min

Drive Type 2-speed hydrostatic with Advanced Attachment Control

Operator Canopy Optional

Enclosed Operator Cab w HVAC Standard

Mechanical Susp Seat Standard

Air Ride Susp Seat Not Applicable

Joystick Control Standard

Keyed Ignition Optional

Keyless Ignition Standard

Speedometer Standard

Hour Meter Standard

Tilt and Telescoping Steering Wheel Standard

Travel Foot Pedal Standard

Cup Holders Standard

Front and Rear Work Lights Standard

Road Lights Standard

Rotating Flashing Beacon Optional

Four Way Flasher Standard

Turn Signals Standard

Advanced Attachment Control Standard

Auxiliary Hydraulics Standard

Engine Derate Standard

Glow Plug Engine Preheat Standard

High Flow Standard

Hydrostatic Transmission Standard

Tilt Lock Out Standard

Two Speed Travel Standard

Z Bar Linkage Standard

Backup Alarm Standard

Horn Standard

Lift Arm Lockout with Manual Bypass Standard

Lift-Arm Support Standard

OICS System Standard

Rear View Camera Optional

Seat Switch Standard

Side Mirrors Right and Left Standard

Wheel Fenders Standard

Rated Operating Capacity with Bucket (Straight) 3,974 lb

Rated Operating Capacity with Bucket (Articulated) 3,257 lb

Rated Operating Capacity with Forks (Straight) 4,786 lb

Rated Operating Capacity with Forks (Articulated) 3,977 lb

Tipping Capacity with Bucket (Straight) 7,947 lb

Tipping Capacity with Bucket (Articulated) 6,515 lb

Operating Weight 11164 lb

Emissions Tier (EPA) Tier 4

Engine Cooling Liquid

Engine Fuel Diesel

Horsepower 68 hp

Turbocharged Engine yes

Length with Standard Bucket 220 in

Width (over tires) 70.9 in

Width (with bucket) 74.8 in

Inside Turning Radius w Bucket 1986 mm

Turning Radius Outside 169.9 in

Outside Turning Radius w Forks 4591 mm

Wheelbase 82.7 in

Articulation Angle 40°

Oscillation Angle 8°

Dump Angle @ Maximum Height 45°

Ground Clearance 12.3 in

Height to Bucket Hinge Pin 10.66 ft

Rollback Angle 50°

Tire Size 405/70 R18

Wheel Tread 54.8 in

Bobcat L85 Compact Wheel Loader Features

Impressive Lifting Capabilities

Standard bucket capacities of up to 1-cubic yard make fast work of tough material handling in landscaping, construction, agriculture and other industry applications.

Tight Turning Radius

The compact wheel loader’s articulated steering delivers nimble performance and high maneuverability through its articulation joint, allowing for easy obstacle navigation and efficient work in jobsites where space is limited.

2-Speed Control

With two speed ranges, operators can adapt the performance of the Bobcat compact wheel loader to whatever the job requires.

Spacious, Pressurized Cab

The roomy, comfortable, ROPS/FOPS Level II certified cab is engineered for all-day operation with low noise levels, easy-to-reach, intuitive controls and a comfortable seat with an adjustable, seat-mounted joystick. The tall, wide windows provide an optimal glass-surface area for high visibility and the cab’s pressurized environment repels dust and improves the efficiency of heat and air conditioning for comfortable operation on even the longest days.

Bobcat Engine

The Bobcat® Tier 4, turbo charged engine delivers powerful, high-torque performance and excellent efficiency. It achieves emissions compliance without the use of a diesel particulate filter or selective catalyst reduction. This means fewer components for easier maintenance, and no downtime for regeneration. Operators will also appreciate the engine’s reliable cold weather starting and a variety of features that make maintenance and service more convenient.

Multi-Carrier Versatility

Bobcat compact wheel loaders come standard with the Power Bob-Tach System and share select attachments with other Bobcat equipment, giving you the most versatility and productivity for your dollar.

Bobcat L85 Compact Wheel Loader
