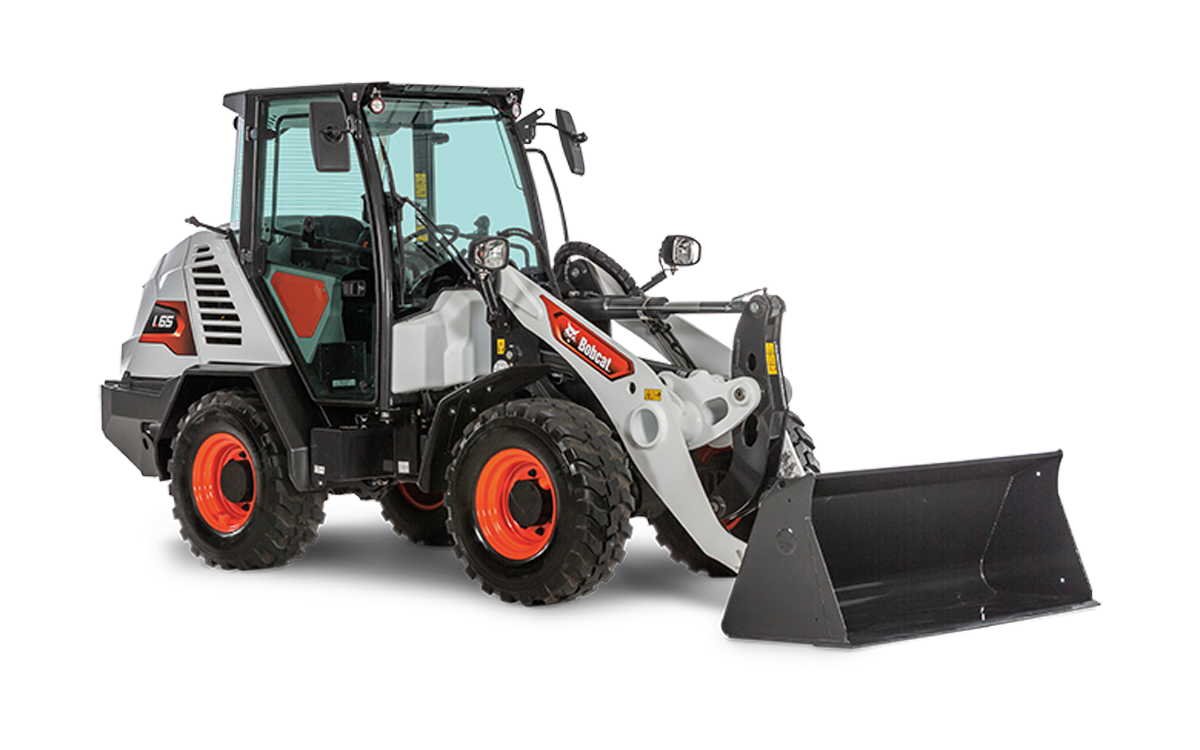

Bobcat L65 Compact Wheel Loader

Browse Specs and more for the Bobcat L65 Compact Wheel Loader - Bobcat of Huntsville

With a high bucket capacity, high lift height, impressive maneuverability and swift travel speeds it’s hard to beat the material-handling capabilities of the Bobcat® L65 compact wheel loader. This durable compact wheel loader delivers the performance, versatility and premium comfort to power through tough jobs in tight spaces.

55 hp

Horsepower

3,133 lb

Operating Capacity

9,944 lb

Operating Weight


Advertised Price Disclaimer: Any displayed prices are the Minimum Advertised Price (MAP) and may not reflect the final sales price. Current national promotions have been deducted from the MAP, but the actual sales price may vary depending on selected options or accessories. Please consult with our sales team for a personalized quote. Financing only available for 0% Down and Approved Credit.

Call Your Local Bobcat of Huntsville Location For Unit Availability.

Bobcat L65 Compact Wheel Loader

Let's Get Started

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form

Specs Icon Specs Arrow Compare Icon Compare Arrow Financing Icon Financing Arrow Find a Location Icon Find a Location Arrow

Bobcat L65 Compact Wheel Loader Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Specifications

Horsepower 55 hp
Rated Operating Capacity with Bucket (Straight) 3,133 lb
Rated Operating Capacity with Bucket (Articulated) 2,618 lb
Rated Operating Capacity with Forks (Straight) 3,759 lb
Rated Operating Capacity with Forks (Articulated) 3,172 lb
Operating Weight 9944 lb
Auxiliary Std Flow 19.8 gal/min
Pump Capacity 19.8 gal/min
Width (over tires) 69.7 in
Fuel Tank 20.8 gal
Auxiliary Std Flow 19.8 gal/min
Pump Capacity 19.8 gal/min
Drive Type 2-speed hydrostatic with Advanced Attachment Control
Operator Canopy Optional
Enclosed Operator Cab w HVAC Standard
Mechanical Susp Seat Standard
Air Ride Susp Seat Not Applicable
Joystick Control Standard
Keyed Ignition Optional
Keyless Ignition Standard
Speedometer Standard
Hour Meter Standard
Tilt and Telescoping Steering Wheel Standard
Travel Foot Pedal Standard
Cup Holders Standard
Front and Rear Work Lights Standard
Road Lights Standard
Rotating Flashing Beacon Optional
Four Way Flasher Standard
Turn Signals Standard
Advanced Attachment Control Standard
Auxiliary Hydraulics Standard
Engine Derate Standard
Glow Plug Engine Preheat Standard
High Flow Not Applicable
Hydrostatic Transmission Standard
Tilt Lock Out Standard
Two Speed Travel Standard
Z Bar Linkage Standard
Backup Alarm Standard
Horn Standard
Lift Arm Lockout with Manual Bypass Standard
Lift-Arm Support Standard
OICS System Standard
Rear View Camera Optional
Seat Switch Standard
Side Mirrors Right and Left Standard
Wheel Fenders Standard

Performance

Rated Operating Capacity with Bucket (Straight) 3,133 lb
Rated Operating Capacity with Bucket (Articulated) 2,618 lb
Rated Operating Capacity with Forks (Straight) 3,759 lb
Rated Operating Capacity with Forks (Articulated) 3,172 lb
Tipping Capacity with Bucket (Straight) 6,266 lb
Tipping Capacity with Bucket (Articulated) 5,236 lb
Operating Weight 9944 lb
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 55 hp
Turbocharged Engine yes

Dimensions

Length with Standard Bucket 218 in
Width (over tires) 69.7 in
Width (with bucket) 74.8 in
Inside Turning Radius w Bucket 2000 mm
Turning Radius Outside 169.2 in
Outside Turning Radius w Forks 4591 mm
Wheelbase 82.7 in
Articulation Angle 40°
Oscillation Angle 8°
Dump Angle @ Maximum Height 45°
Ground Clearance 11.3 in
Height to Bucket Hinge Pin 10.58 ft
Rollback Angle 55°
Tire Size 365/70 R18
Wheel Tread 55.5 in

Bobcat L65 Compact Wheel Loader Features

Impressive Lifting Capabilities

Impressive Lifting Capabilities

Standard bucket capacities of up to 1-cubic yard make fast work of tough material handling in landscaping, construction, agriculture and other industry applications.

Tight Turning Radius

Tight Turning Radius

The compact wheel loader’s articulated steering delivers nimble performance and high maneuverability through its articulation joint, allowing for easy obstacle navigation and efficient work in jobsites where space is limited.

2-Speed Control

2-Speed Control

With two speed ranges, operators can adapt the performance of the Bobcat compact wheel loader to whatever the job requires.

Spacious, Pressurized Cab

Spacious, Pressurized Cab

The roomy, comfortable, ROPS/FOPS Level II certified cab is engineered for all-day operation with low noise levels, easy-to-reach, intuitive controls and a comfortable seat with an adjustable, seat-mounted joystick. The tall, wide windows provide an optimal glass-surface area for high visibility and the cab’s pressurized environment repels dust and improves the efficiency of heat and air conditioning for comfortable operation on even the longest days.

Bobcat Engine

Bobcat Engine

The Bobcat® Tier 4, turbo charged engine delivers powerful, high-torque performance and excellent efficiency. It achieves emissions compliance without the use of a diesel particulate filter or selective catalyst reduction. This means fewer components for easier maintenance, and no downtime for regeneration. Operators will also appreciate the engine’s reliable cold weather starting and a variety of features that make maintenance and service more convenient.

Multi-Carrier Versatility

Multi-Carrier Versatility

Bobcat compact wheel loaders come standard with the Power Bob-Tach System and share select attachments with other Bobcat equipment, giving you the most versatility and productivity for your dollar.
