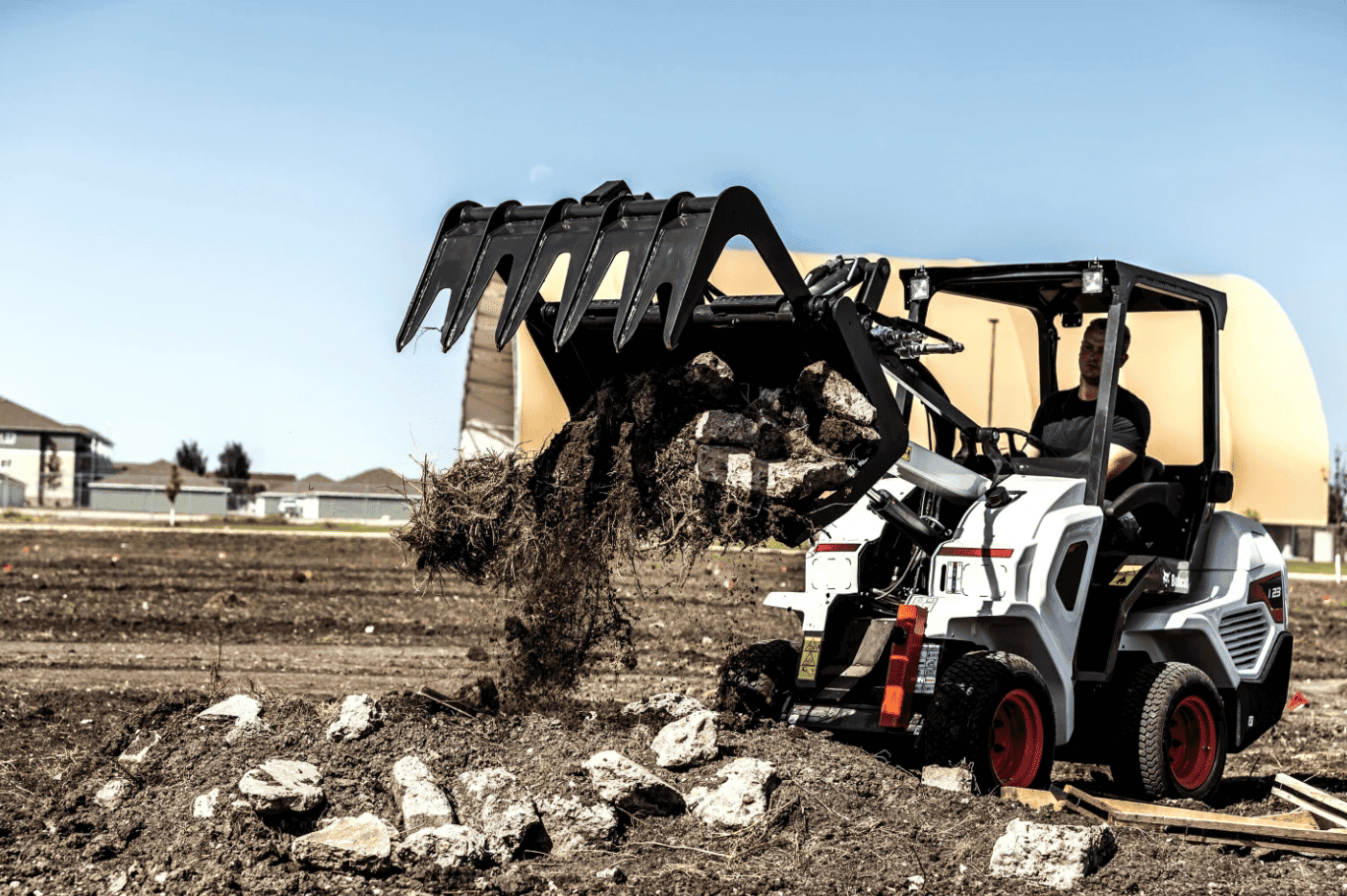

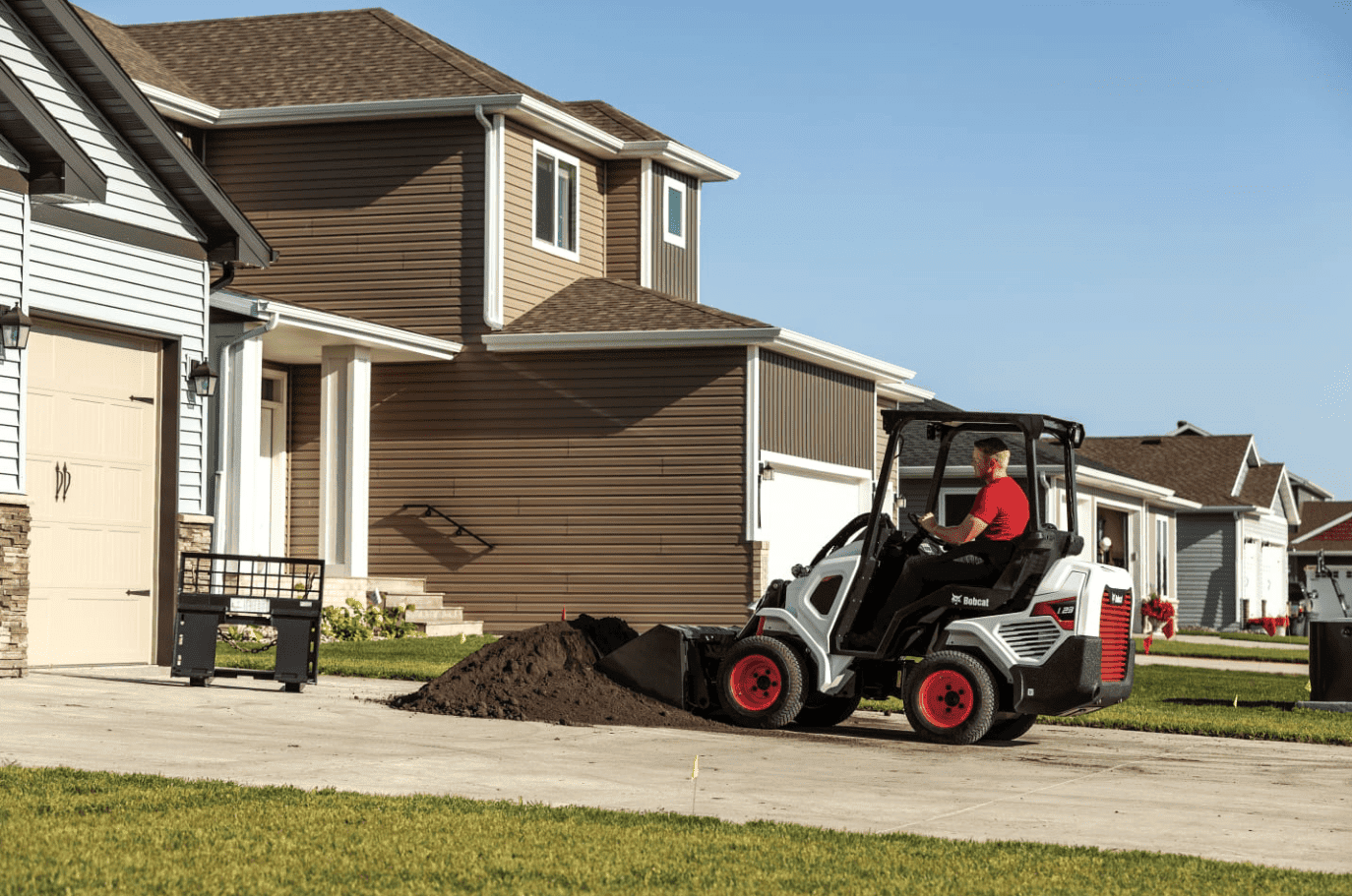

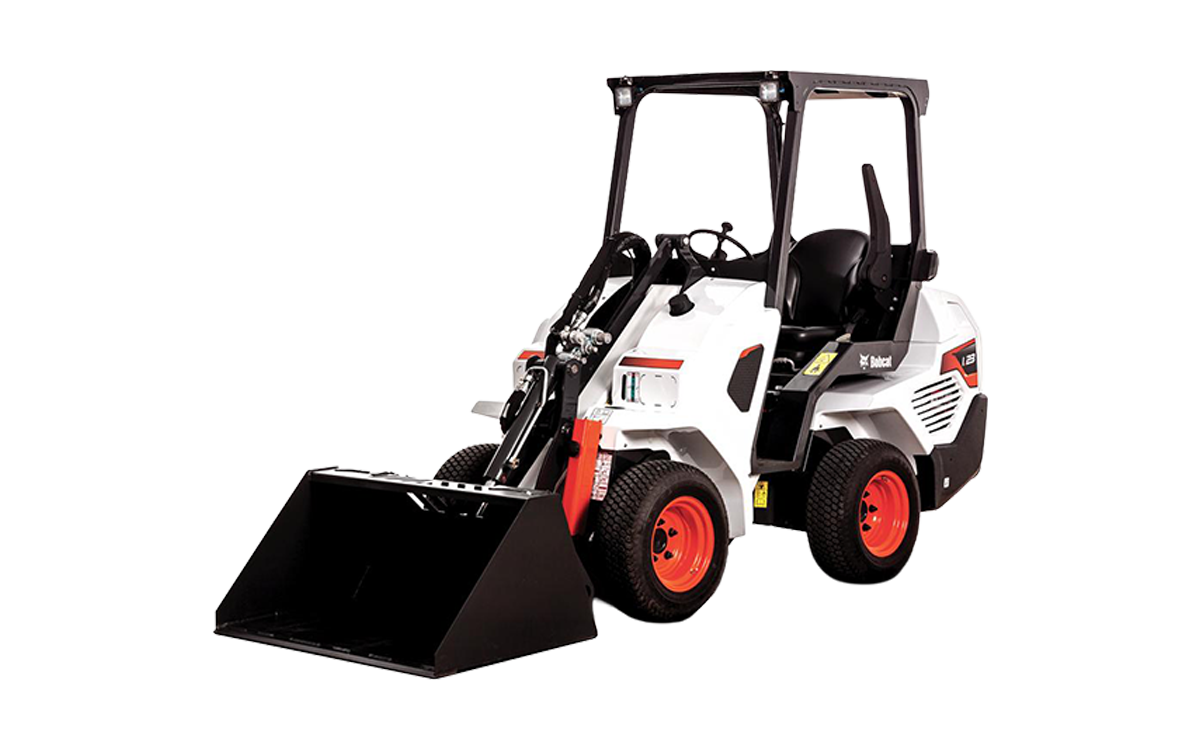

Bobcat L23 Small Articulated Loader
The L23 Bobcat® small articulated loader delivers impressive lifting capability in a compact and turf-friendly package.
24.8 hp
Horsepower
1,395 lb
Operating Capacity
3,790 lb
Operating Weight
Advertised Price Disclaimer: Any displayed prices are the Minimum Advertised Price (MAP) and may not reflect the final sales price. Current national promotions have been deducted from the MAP, but the actual sales price may vary depending on selected options or accessories. Please consult with our sales team for a personalized quote. Financing only available for 0% Down and Approved Credit.
Call Your Local Bobcat of Huntsville Location For Unit Availability.
Specifications
Bobcat L23 Small Articulated Loader Specs
** Listed specs based on machine base model. Actual specs may vary depending on model and options. **
Horsepower
24.8 hp
Rated Operating Capacity Straight (ISO)
1,395 lb
Rated Operating Capacity Art. (ISO)
1,159 lb
Operating Weight
3790 lb
Auxiliary Std Flow
12.1 gal/min
Width (over tires)
43.2 in
Fuel Tank
9.6 gal
System Relief @ Quick Couplers
2,900 psi
Auxiliary Std Flow
12.1 gal/min
Drive Type
Hydrostatic pump driving 4 independent wheel motors
Air Conditioning
Not Applicable
Adjustable Seat
Standard
Backup Alarm
Standard
BICS System (Interlock)
Standard
Cab Enclosure
Optional
Cab Heater
Optional
Operating Lights
Optional
Rear Window
Optional
Lift-Arm Support
Standard
Two Speed Travel
Not Applicable
Deluxe Instrumentation
Not Applicable
Hydraulic Bucket Positioning
Standard
Auxiliary Hydraulics
Standard
Spark Arrestor Muffler
Standard
Bob-Tach Attachment System
Standard
Horn
Standard
Front and Rear Work Lights
Standard
Rotating Flashing Beacon
Optional
Turn Signals
Optional
Tires-Ply Rating
10
Heavy-Duty Float Tires
Optional
Cup Holder
Standard
Grab Handles
N/A
Rated Operating Capacity Straight (ISO)
1,395 lb
Rated Operating Capacity Art. (ISO)
1,159 lb
ROC with Counterweight Option Straight
1815 lb
ROC with Counterweight Option Art.
1471 lb
Tipping Load Straight
2789 lb
Tipping Load Art.
2317 lb
Operating Weight
3790 lb
Travel Speed
8.2 mph
Emissions Tier (EPA)
Tier 4
Engine Cooling
Liquid
Engine Fuel
Diesel
Horsepower
24.8 hp
Turbocharged Engine
no
Length
122.4 in
Length without Attachment
93.2 in
Length with Standard Bucket
122.4 in
Width (over tires)
43.2 in
Width (with bucket)
44 in
Height with Operator Cab
78.1 in
Height to Bucket Hinge Pin Ext
85.4 in
Height to Bucket Hinge Pin Ret
85.4 in
Max Reach
16.8 in
Turning Radius Inside
77.2 in
Turning Radius Outside
100.9 in
Wheelbase
47.2 in
Articulation Angle
43°
Dump Angle @ Maximum Height
40°
Ground Clearance
5.5 in
Rollback Angle
32°
Tire Size
23X8.5-12
Wheel Tread
34.4 in
