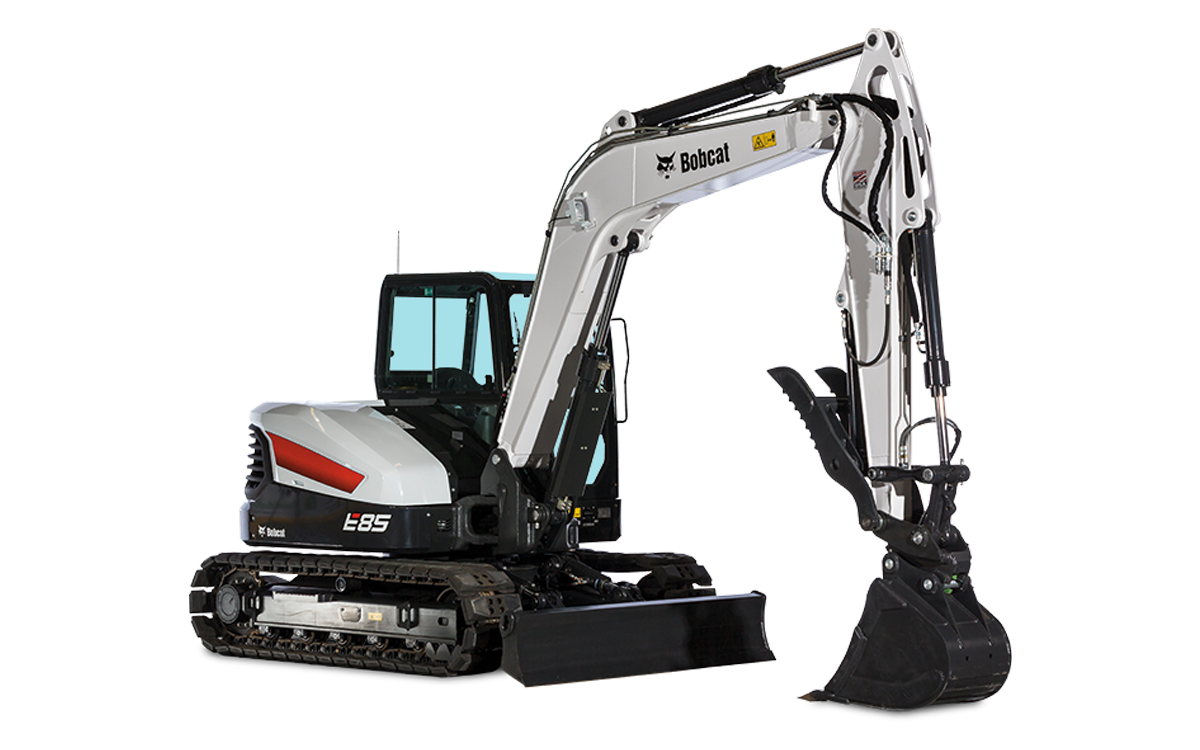

Bobcat E85 Compact Excavator

The largest Bobcat compact excavator delivers big performance in a compact machine.

59.4 hp

Horsepower

18,960 lb

Operating Weight

14,509 lbf

Bucket Digging Force

Bobcat E85 Compact Excavator

Let's Get Started

"*" indicates required fields

Hidden
Newsletter Signup
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
This field is for validation purposes and should be left unchanged.

Bobcat E85 Compact Excavator Specs & Add-Ons

Key Specifications & Add-ons

Air Conditioning Standard
Cab Enclosure Standard
Cab Heater Standard
Heater Air Conditioning Standard
Radio Optional
Tail Swing Type Minimal
Engine Shutdown Not Applicable
Auxiliary Hydraulics Standard
Secondary Auxiliary Hydraulics Optional
Quick Tach System Optional
Rubber Track Standard
Selectable Auxiliary Hydraulic Flow Standard
Angle Blade Not Applicable
Horsepower 59.4 hp
Operating Weight 18,960 lb
Bucket Digging Force 14,509 lbf
Maximum Reach at Ground Level 286.8 in
Width 91 in
Tail Swing Type Minimal
Fuel Tank 29.1 gal
Auxiliary Std Flow 25.1 gal/min
Auxiliary Pressure 3,045 psi

Performance

Operating Weight 18,960 lb
Weight Class 8.6 t
Travel Speed - High 2.9 mph
Travel Speed - Low 1.7 mph
Arm Digging Force 8,069 lbf
Bucket Digging Force 14,509 lbf
Rated Lift Capacity 9327 lb
Lift Radius 118 in
Boom Swing - Left 70°
Boom Swing - Right 55°
Maximum Dig Depth 186 in
Max Dump Height 198 in
Maximum Reach at Ground Level 286.8 in
Emissions Tier (EPA) Tier 4
Engine Fuel Diesel
Maximum Governed RPM 2,100 rpm
Horsepower 59.4 hp
Turbocharged Engine yes
Optional Turbocharged Engine N/A

Dimensions

Length 246 in
Overall Length in Travel Position 158.4 in
Width 91 in
Height 104 in
Height with Operator Cab 104 in

Bobcat E85 Compact Excavator Features

Low-Effort Joysticks

Low-Effort Joysticks

Low-effort joysticks in R2-Series excavators respond easily to operator input, helping operators work longer with less fatigue.

Dual Flange Roller System

Dual Flange Roller System

Dual flange track rollers extend the undercarriage structure closer to the track’s edge so you can dig with greater confidence over the side of the machine.

Multiple Arm Configurations

Multiple Arm Configurations

Multiple arm configurations are available on select models, including standard, long and extendable. Depending on the reach, depth, power, and lifting performance you need, there’s an arm to meet your job requirements.

Premium Cab

Premium Cab

Premium comfort gives you the endurance to power through long days and tough jobs. When you step inside the Bobcat compact (mini) excavator cab, you’ll experience plenty of headroom and legroom, clear visibility, a larger suspension seat and more.

Touch Display

Touch Display

The most advanced in-cab display for compact equipment – optional on R2-Series excavators – provides detailed machine information and unprecedented device connectivity. View machine performance information on the wide touchscreen.

Depth Check System

Depth Check System

The Bobcat® depth check system delivers accurate dig depth measurement for precise digging performance, eliminating over-digging and the costs associated with backfilling and compacting fill material. R2-Series models are depth check ready.

Pro Clamp System

Pro Clamp System

The Pro Clamp™ system consists of a base component, standard pin-on work tool and optional grading tool. Grab large, small or irregular objects with greater confidence. Create a smooth trench bottom and clean up spoil piles quickly.

Integrated Lift Eye

Integrated Lift Eye

The lift eye is standard on R2-Series excavators to provide a convenient method for handling objects or moving items in and out of the trench.

Optional Rear Camera

Optional Rear Camera

The optional rear camera for R2-Series excavators provides an additional viewpoint for working in certain applications. When needed, you can get a continuous rear view from the operator seat.
