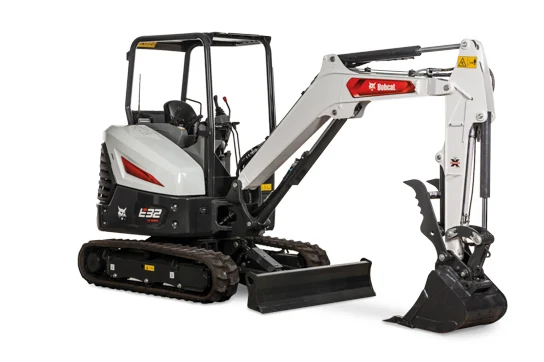

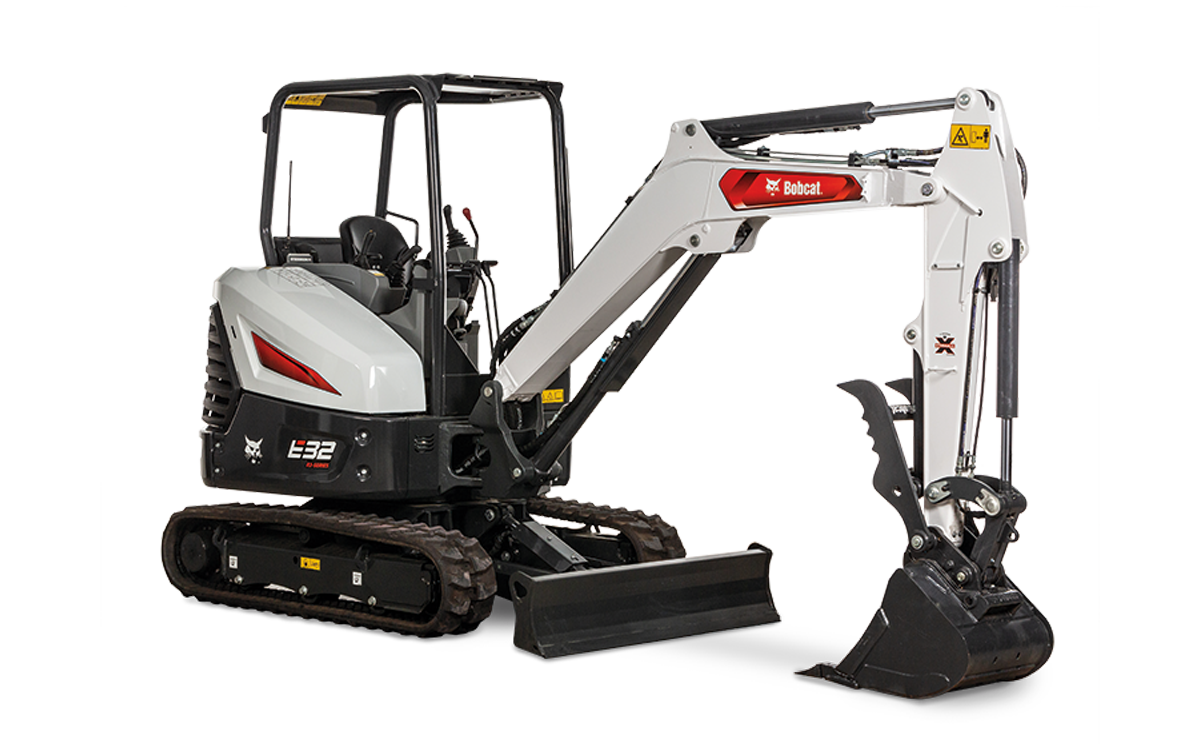

Bobcat E32 Compact Excavator

Browse specs and more for the Bobcat E32 Compact Excavator - Bobcat of Huntsville
Browse specs and more for the Bobcat E32 Compact Excavator - Bobcat of Huntsville
Browse specs and more for the Bobcat E32 Compact Excavator - Bobcat of Huntsville
Browse specs and more for the Bobcat E32 Compact Excavator - Bobcat of Huntsville

The Bobcat® E32 compact (mini) excavator packs powerful performance and maneuverability into a conventional tail swing design.
Narrower than the E35, this machine is ideal if you frequently work around areas with space restrictions such as doors or gates.
Boost your working range with the long arm option or a clamp-ready extendable arm option.

The E32 features unmatched power and a narrow stance.

24.8 hp Horsepower
7,403 lb Operating Weight
10.1 ft Dig Depth

Advertised Price Disclaimer: Any displayed prices are the Minimum Advertised Price (MAP) and may not reflect the final sales price. Current national promotions have been deducted from the MAP, but the actual sales price may vary depending on selected options or accessories. Please consult with our sales team for a personalized quote. Financing only available for 0% Down and Approved Credit.

Call Your Local Bobcat of Huntsville Location For Unit Availability.

Specifications

Bobcat E32 Compact Excavator Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options. **

Horsepower 24.8 hp
Operating Weight 7,403 lb
Bucket Digging Force 7,284 lbf
Maximum Reach at Ground Level 194.5 in
Width 61.8 in
Tail Swing Type Conventional
Fuel Tank 13.7 gal
Auxiliary Std Flow 16.9 gal/min
Auxiliary Pressure 2,987 psi
Operating Weight 7,403 lb
Weight Class 3.4 t
Travel Speed - High 2.9 mph
Travel Speed - Low 1.6 mph
Arm Digging Force 4,690 lbf
Bucket Digging Force 7,284 lbf
Rated Lift Capacity 2975 lb
Lift Radius 118 in
Boom Swing - Left 75°
Boom Swing - Right 55°
Maximum Dig Depth 121.2 in
Max Dump Height 137.2 in
Maximum Reach at Ground Level 194.5 in
Emissions Tier (EPA) Tier 4
Engine Fuel Diesel
Maximum Governed RPM 2,450 rpm
Turbocharged Engine no
Optional Turbocharged Engine N/A
Length 183.7 in
Overall Length in Travel Position 183.7 in
Width 61.8 in
Height 96.2 in
Height with Operator Cab 96.2 in
Why Choose the Bobcat E32 Compact Excavator

Bobcat E32 Compact Excavator Features

Faster Cycle Times

Operators often tell us that a Bobcat compact excavator can work and dig faster. Responsive and precise controls engage powerful work group functions for fast cycle times. Advanced hydraulics are finely tuned to deliver maximum hydraulic horsepower.

Auto Shift

Get superb travel performance – without the need to manually downshift – with auto-shift travel. Automatically transitions the travel motors to and from high range for greater tractive effort and ease of use. Simply select the travel speed range and go. A directional lug track also provides a smoother ride and less vibration when traveling

Predictable Control

Bobcat compact excavators help you confidently make precise movements – so you can leave hand tools behind on jobs that require finesse. Bobcat-exclusive control valve systems deliver smooth operation without sacrificing cycle times. Fingertip controls for auxiliary hydraulics, boom swing and angle blade make multi-functioning easier.

Non-DPF Engine

Most competitor compact excavators require a diesel particulate filter (DPF) to meet emissions standards. Bobcat compact excavators meet emissions standards without a DPF. DPF regeneration can interrupt work, and cleaning leads to more downtime and maintenance.

Sealed Connectors

Jobsites can be dirty, dusty and wet. Bobcat electrical systems are made for it. More sealed connections than in other manufacturers’ machines. Watertight and corrosion resistant.

Protected Components

Compare Bobcat compact excavators to other machines, and you’ll see a thoughtful design that stands up to common jobsite challenges. More steel hydraulic lines, which are more durable than rubber hoses. Hydraulic lines are routed to prevent costly damage from impacts in the trench. Well-designed mounts and minimal fittings stand up to heavy-duty work. Cast pivot joints provide precise pin alignment for longer life of pivot pins and bushings.

Clear Visibility

When you have clear visibility to your work area, your productivity can take off. Cabs with narrow cab pillars and more glass surface area. Cabs with narrow cab pillars and more glass surface area. More visibility to the work group and angle blade.

Operator-Friendly Controls

Bobcat compact excavators have simple, ergonomic controls that keep you productive all day long. More controls at your fingertips for precision, flexibility and low fatigue. Newly designed joysticks fit better in your hands.

Maximum Headroom and Legroom

Inside the cab of a Bobcat compact (mini) excavator, you have plenty of space to work comfortably. Designed for all-day comfort. Wide suspension seat. More floorspace.

Depth Check

Prevent over- or under-digging. The Bobcat depth check system makes it easy to achieve an accurate dig depth without exiting your mini excavator. Operators set a desired digging depth and work against that benchmark. Sensors detect the exact position of the bucket's teeth. Audible alerts indicate whether the operator is approaching, at or beyond the target.

Deluxe Display

The Bobcat depth check system integrates with Bobcat displays for compact excavators. Install easily with deluxe instrumentation, touchscreen or color display. Eliminate the need for an add-on display monitor.

Optional Laser Receiver

Get more flexibility to move around larger jobsites while using the depth check system. Bench off a laser signal rather than a fixed grade point. Compatible with optional CR600 and BLR 2 laser receivers.
