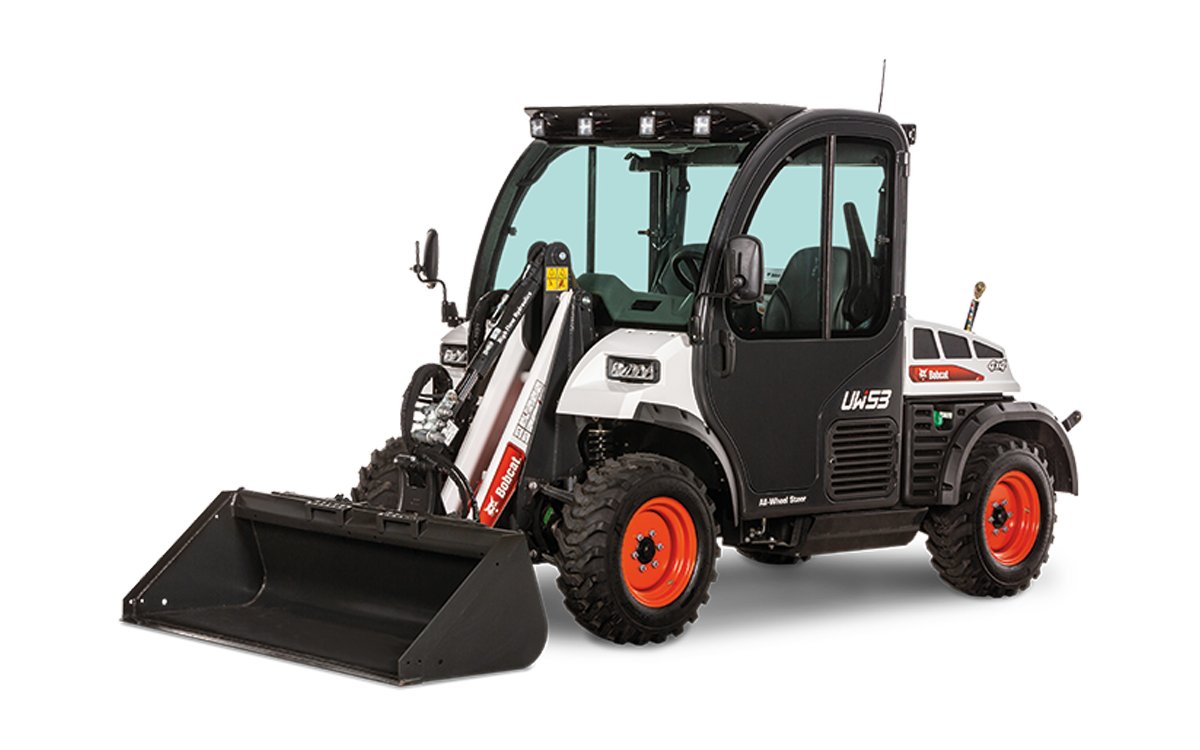

Bobcat UW53 Toolcat Utility Work Machine

The H-Series UW53 Toolcat™, the next generation to improve upon the 5610 Toolcat, is a leading do-it-all machine that can now do even more thanks to enhancements inside and out.

1,500 lb

Operating Capacity

50.5 in

Turning Radius

61 hp

Horsepower

Bobcat UW53 Toolcat Utility Work Machine

Let's Get Started

"*" indicates required fields

Hidden
Newsletter Signup
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
This field is for validation purposes and should be left unchanged.

Bobcat UW53 Toolcat Utility Work Machine Specs & Add-Ons

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications & Add-ons

Heater Air Conditioning Standard
Work Lights Standard
Enclosed Operator Cab (ROPS/FOPS) Standard
Auxiliary Hydraulics Standard
Bob-Tach Attachment System Standard
Joystick Control Standard
Hydrostatic Transmission Standard
Rated Operating Capacity (ISO) 1,500 lb
Travel Speed - Max 16.5 mph
Auxiliary Std Flow 18.8 gal/min
Auxiliary High Flow 27.9 gal/min
Turning Radius (AWS Mode) 50.5 in
Fuel Tank 20 gal
Total Vehicle Rated Capacity 4200 lb
Auxiliary Std Flow 18.8 gal/min
Auxiliary Pressure 3,000 psi
Auxiliary High Flow 27.9 gal/min

Performance

Rated Operating Capacity (ISO) 1,500 lb
Operating Weight 5710 lb
Travel Speed 8 mph
Travel Speed - Max 16.5 mph
Travel Speed - Low 8 mph
Travel Speed - Reverse 8 mph
Machine Rated Capacity 2200 lb
3-Point Hitch Category 1
Lift Capacity at 24" behind Lift Point 1775 lb
PTO HP 25 hp
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 61 hp
Turbocharged Engine yes

Dimensions

Length 180.8 in
Length without Attachment 153.8 in
Width 60 in
Width (with bucket) 62 in
Height 81 in
Height with Operator Cab 81 in
Ground Clearance 8 in
Outside Turning Diameter 210 in

Bobcat UW53 Toolcat Utility Work Machine Features

All-Wheel Steer

All-Wheel Steer

It’s no secret that better maneuverability makes getting more things done easier. That’s why the Toolcat™ utility work machine, with all-wheel steer, is the picture of productivity. Easily move around tight spaces with minimal ground disturbance. Coupled with its hydraulic power steering, you’ll have nearly effortless control.

Rear View Camera

Rear View Camera

The optional rearview camera, available on the UW53 and UW56, enhances the operator’s rear visibility for a variety of activities and tasks.

LED External Lighting

LED External Lighting

Take on anything the night dishes out with LED external lighting. The new Toolcat™ utility work machine features completely redesigned lighting for optimum visibility while using less power and lasting longer for increased performance in low-light working conditions.

45+ Attachments

45+ Attachments

Mow in the morning, remove downed trees in the afternoon and dig postholes in the evening. You can leverage your Toolcat™ utility work machine countless ways by pairing it with 45+ attachments. Buy the attachments you’ll use frequently or rent the ones you need for one-time jobs.

Speed Management

Speed Management

Get finer control of your machine’s travel speed when operating attachments with Independent Speed Management. The new Toolcat™ utility work machine allows you to adjust your travel speed independently from your engine speed for optimal attachment performance and precise acceleration during operation.

Comfortable Cab

Comfortable Cab

It looks rugged on the outside but it’s cozy on the inside thanks to the redesigned dash and comfort features. The interior of the cab has been retooled with your comfort and productivity in mind including improved ergonomics, component placements and additional features.

Climate Control/HVAC

Climate Control/HVAC

Stay comfortable through long hot days or frigid cold nights on the job with the now standard HVAC system in the Toolcat utility work machine. The system forces air distribution where it’s needed most with the help of newly positioned 360-degree adjustable vents.
