Starting At $75,447

0% for 48 Months*$1,635/MO

*With 0% Down and Approved Credit.

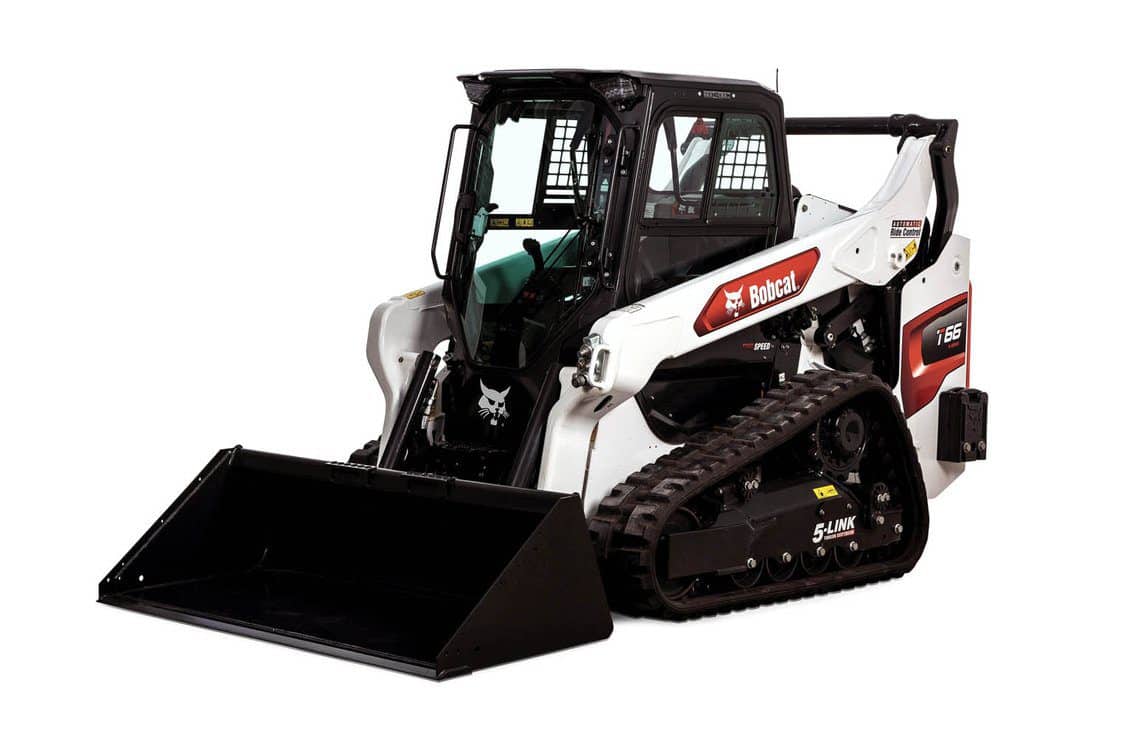

Bobcat T66 Compact Track Loader

No matter how extreme your working conditions, the vertical-lift-path Bobcat® T66 compact track loader tackles tough jobs where other equipment can’t.

74 hp

Horsepower

2,450 lb

Operating Capacity

8927 lb

Operating Weight

Bobcat T66 Compact Track Loader

Let's Get Started

"*" indicates required fields

Hidden
Newsletter Signup
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
This field is for validation purposes and should be left unchanged.

$425

Per Day

$1375

Per Week

$2750

Per Month

Bobcat T66 Compact Track Loader

Rent This Machine

"*" indicates required fields

Hidden
Newsletter Signup
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
Hidden
This field is for validation purposes and should be left unchanged.

** The listed prices are base rate, additional fees may apply, see store for details **

Bobcat T66 Compact Track Loader Specs & Add-Ons

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications & Add-ons

Joystick Control Optional
Air Conditioning Optional
Backup Alarm Standard
BICS System (Interlock) Standard
Cab Heater Optional
Operating Lights Standard
Suspension Seat Standard
Two Speed Travel Optional
Deluxe Instrumentation Optional
Engine Shutdown Standard
Hydraulic Bucket Positioning Optional
High Flow Option Optional
Auxiliary Hydraulics Standard
Bob-Tach Attachment System Standard
Power Bob-Tach Optional
ACS (Switchable Controls) Not Applicable
Ride Control Optional
Horn Standard
Cab Enclosure Optional
Adjustable Seat Standard
Sound Option Optional
Rear Window Standard
Top Window Standard
Seat Belt Standard 2-Point Lap Belt and Optional 3-Point Shoulder Belt on Two-Speed Models
Spark Arrestor Muffler DOC
Lift-Arm Support Standard
Horsepower 74 hp
Rated Operating Capacity (ISO) 2,450 lb
Operating Weight 8927 lb
Ground Pressure (Rubber) 5.9 psi
Auxiliary Std Flow 17.6 gal/min
Auxiliary High Flow 26.9 gal/min
Joystick Control Optional
Fuel Tank 28.3 gal
System Relief @ Quick Couplers 3,500 psi
Auxiliary Std Flow 17.6 gal/min
Auxiliary High Flow 26.9 gal/min

Performance

Rated Operating Capacity (ISO) 2,450 lb
Operating Capacity (50% of Tip) 3500 lb
Tipping Load 7000 lb
Operating Weight 8927 lb
Travel Speed 7.2 mph
Travel Speed (2-speed option) 10.2 mph
Ground Pressure (Rubber) 5.9 psi
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 74 hp
Turbocharged Engine yes

Dimensions

Length 134.9 in
Length without Attachment 107 in
Length with Standard Bucket 134.9 in
Width 67 in
Width (with bucket) 68 in
Height 80.5 in
Height with Operator Cab 80.5 in
Height to Bucket Hinge Pin 120 in
Reach @ Maximum Height 36.7 in
Turning Radius 81.5 in
Length of track on ground 54.3 in
Track Width 12.6 in
Track Width - Optional 15.7 in

Bobcat T66 Compact Track Loader Features

5-Link Torsion Suspension

5-Link Torsion Suspension

Experience elevated levels of performance and comfort. The industry's most advanced system offers unprecedented durability, reduced maintenance requirements and reduces noise and vibration while you're working.

Powerful Hydraulics

Powerful Hydraulics

Bobcat loaders are in a class by themselves. Each component – including the engine, pumps and hydraulic system – is engineered to deliver maximum hydraulic performance so you can work quicker, lift more and outperform your competition.

Selectable Joystick Control

Selectable Joystick Control

No other joystick in the industry comes close to delivering the level of customization and control you'll find with SJC. It gives you all the capabilities of standard controls, along with additional functions that propel your productivity with better control of your loader and attachments.

Increased Lifting Capabilities

Increased Lifting Capabilities

R-Series loaders deliver increased lifting capabilities. The cast-steel lift arm sections are stronger to ensure optimal performance so you can handle more challenging jobs with greater confidence and ease.

Redesigned Bobcat Engine

Redesigned Bobcat Engine

R-Series loaders feature a Bobcat engine that delivers the performance you need while reducing and simplifying routine maintenance. With the innovative new fuel system, low fuel levels are more forgiving for busy operators.

Premium Comfort

Premium Comfort

Bobcat loaders offer a variety of comfort features including roomy cabs, heated air-ride seats, optional automatic heat and air conditioning, ergonomic controls, innovative instrumentation and more to keep you productive.

Touch Display

Touch Display

The most advanced in-cab display, optional on R-Series loaders, delivers detailed machine information to make operation efficient and productive. An integrated radio features Bluetooth™ connectivity. Display offers a waterproof touchscreen.

Improved Cooling System

Improved Cooling System

The redesigned cooling system on R-Series loaders delivers optimal operation and maximum uptime. The system includes an optional reversible fan, heavy-duty steel louvered tailgate, larger hydraulic hoses and tubelines, increased fan size and high-capacity radiator.

Bob-Tach Attachment Systems

Bob-Tach Attachment Systems

Change attachments quickly using the standard Bob-Tach® mounting system included with every loader. R-Series models include a stronger connection point and less debris buildup. Or upgrade to the optional Power Bob-Tach system for swapping non-hydraulic attachments without leaving your seat.
