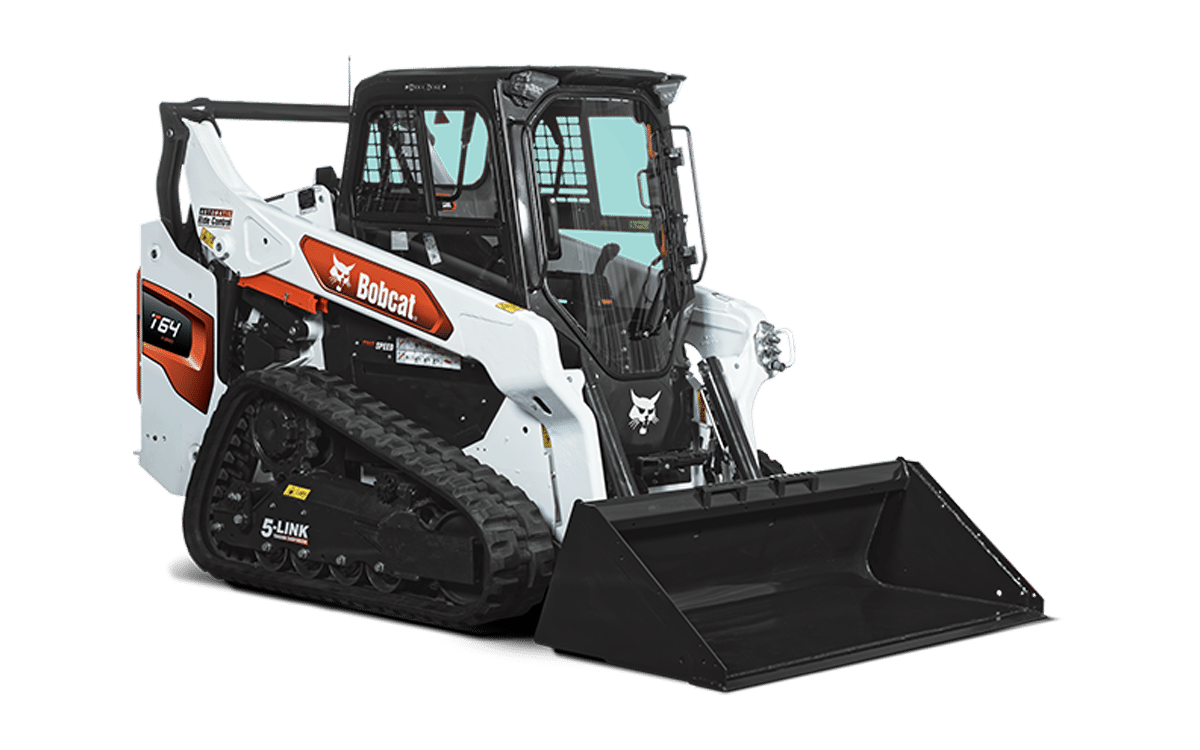

Bobcat T64 Compact Track Loader

Browse specs and more for the Bobcat T64 Compact Track Loader - Bobcat of Huntsville

With unmatched attachment versatility you’ll accomplish more and maximize your return on investment.
The T64 is one tough machine with cast-steel lift arm construction, enhanced cold-weather operation and an undercarriage design that enhances ride quality and reduces track wear.
The Bobcat engine meets Tier 4 regulations without a diesel particulate filter, reducing your downtime and operating costs.

The mid-frame T64 is a high-performing, highly maneuverable compact loader. It’s built Bobcat tough, with features that enhance durability and simplify routine maintenance. With the T64 controls at your fingertips, you’re an unstoppable force.

68 hp Horsepower
2,300 lb Operating Capacity
8,727 lb Operating Weight

Advertised Price Disclaimer: Any displayed prices are the Minimum Advertised Price (MAP) and may not reflect the final sales price. Current national promotions have been deducted from the MAP, but the actual sales price may vary depending on selected options or accessories. Please consult with our sales team for a personalized quote. Financing only available for 0% Down and Approved Credit.

Call Your Local Bobcat of Huntsville Location For Unit Availability.

Specifications

Bobcat T64 Compact Track Loader Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options. **

Horsepower 68 hp
Rated Operating Capacity (ISO) 2,300 lb
Operating Weight 8727 lb
Ground Pressure (Rubber) 5.7 psi
Auxiliary Std Flow 17.6 gal/min
Auxiliary High Flow 26.9 gal/min
Joystick Control Optional
Fuel Tank 28.3 gal
System Relief @ Quick Couplers 3,500 psi
Auxiliary Std Flow 17.6 gal/min
Auxiliary High Flow 26.9 gal/min
Joystick Control Optional
Air Conditioning Optional
Backup Alarm Standard
BICS System (Interlock) Standard
Cab Heater Optional
Operating Lights Standard
Suspension Seat Standard
Two Speed Travel Optional
Deluxe Instrumentation Optional
Engine Shutdown Standard
Hydraulic Bucket Positioning Optional
High Flow Option Optional
Auxiliary Hydraulics Standard
Bob-Tach Attachment System Standard
Power Bob-Tach Optional
Ride Control Optional
Horn Standard
Cab Enclosure Optional
Adjustable Seat Standard
Sound Option Optional
Rear Window Standard
Top Window Standard
Seat Belt Standard 2-Point Lap Belt and Optional 3-Point Shoulder Belt on Two-Speed Models
Spark Arrestor Muffler DOC
Lift-Arm Support Standard
Rated Operating Capacity (ISO) 2,300 lb
Operating Capacity (50% of Tip) 3286 lb
Tipping Load 6571 lb
Operating Weight 8727 lb
Travel Speed 7.2 mph
Travel Speed (2-speed option) 10.2 mph
Ground Pressure (Rubber) 5.7 psi
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 68 hp
Turbocharged Engine yes
Length 134.9 in
Length without Attachment 107 in
Length with Standard Bucket 134.9 in
Width 67 in
Width (with bucket) 68 in
Height 80.5 in
Height with Operator Cab 80.5 in
Height to Bucket Hinge Pin 120 in
Reach @ Maximum Height 36.7 in
Turning Radius 81.5 in
Length of track on ground 54.3 in
Track Width 12.6 in
Track Width - Optional 15.7 in
Why Choose the Bobcat T64 Compact Track Loader

Bobcat T64 Compact Track Loader Features

5-Link Torsion Suspension

Experience elevated levels of performance and comfort. The industry's most advanced system offers unprecedented durability, reduced maintenance requirements and reduces noise and vibration while you're working.

Powerful Hydraulics

Bobcat loaders are in a class by themselves. Each component – including the engine, pumps and hydraulic system – is engineered to deliver maximum hydraulic performance so you can work quicker, lift more and outperform your competition.

Selectable Joystick Control

No other joystick in the industry comes close to delivering the level of customization and control you'll find with SJC. It gives you all the capabilities of standard controls, along with additional functions that propel your productivity with better control of your loader and attachments.

Increased Lifting Capabilities

R-Series loaders deliver increased lifting capabilities. The cast-steel lift arm sections are stronger to ensure optimal performance so you can handle more challenging jobs with greater confidence and ease.

Redesigned Bobcat Engine

R-Series loaders feature a Bobcat engine that delivers the performance you need while reducing and simplifying routine maintenance. With the innovative new fuel system, low fuel levels are more forgiving for busy operators.

Premium Comfort

Bobcat loaders offer a variety of comfort features including roomy cabs, heated air-ride seats, optional automatic heat and air conditioning, ergonomic controls, innovative instrumentation and more to keep you productive.

Touch Display

The most advanced in-cab display, optional on R-Series loaders, delivers detailed machine information to make operation efficient and productive. An integrated radio features Bluetooth™ connectivity. Display offers a waterproof touchscreen.

Improved Cooling System

The redesigned cooling system on R-Series loaders delivers optimal operation and maximum uptime. The system includes an optional reversible fan, heavy-duty steel louvered tailgate, larger hydraulic hoses and tubelines, increased fan size and high-capacity radiator.

Bob-Tach Attachment Systems

Change attachments quickly using the standard Bob-Tach® mounting system included with every loader. R-Series models include a stronger connection point and less debris buildup. Or upgrade to the optional Power Bob-Tach system for swapping non-hydraulic attachments without leaving your seat.
