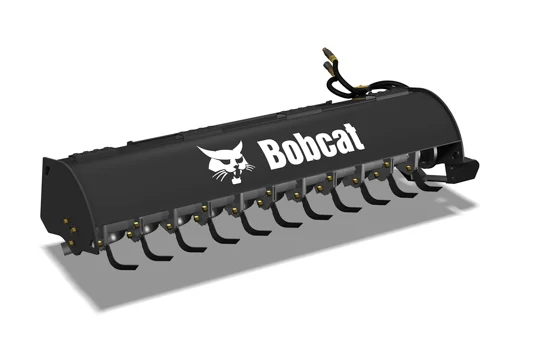

Tiller

Compatible With:

Loaders

Tiller

Let's Get Started

"*" indicates required fields

This field is hidden when viewing the form
Newsletter Signup
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.

$155

Per Day

$465

Per Week

$1165

Per Month

Tiller

Get Rental Quote

"*" indicates required fields

This field is hidden when viewing the form
Newsletter Signup
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.

]

Key Specifications

Operating Weight 475 lb
Length 32.9 in
Width 47.9 in
Height 24.2 in
Working Depth 6" maximum
Drive Direct Drive
Tine Rotation Bi-rotational
Working Width 40.6 in
Travel Direction Foward/Reverse
Tines 24
Flow Range Min 9 gal/min
Flow Range Max 18 gal/min

Key Features

Adjustable Skid Shoes The attachments adjustable skid shoes deliver depth control for more precise tilling operation.
Bi-Directional Rotation With bi-directional rotation, operators have the option of top-cutting and under-cutting when tilling in either direction, maximizing attachment versatility and increasing operating capabilities.
Replaceable Tines Hardened for maximum soil penetration, the double-edge tines break through clumps and tear through materials to deliver loosened soil for ground preparation.
Offset Mounting Offset mounting accommodates tilling next to sidewalks, curbs, and buildings, increasing the jobsite capabilities of the tiller attachment.
Direct-Drive, Hydraulic Motor The direct-drive motor delivers necessary operating power while reducing overall maintenance costs, extending the life of the attachment and eliminating the need for high wear items such as gear boxes, chains, sprockets and sheer pins.
Bob-Tach® Mounting System The Bob-Tach® mounting system turns any Bobcat® loader into a multi-job machine with a tight-fit attachment hook-up. Fast and easy attachment changes mean spending less time on maintenance and more time on the job.
