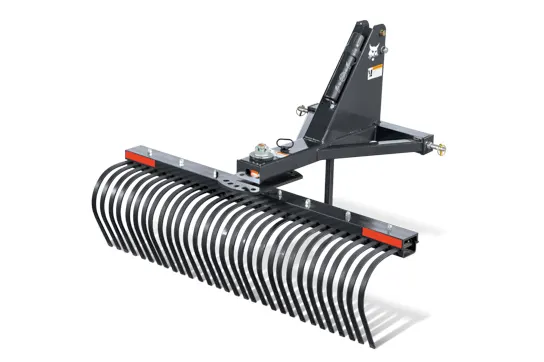

Bobcat Tractor Tine Rake

The tine rake implement does not require power take-off (PTO). Simply attach it to the 3-point hitch and get started. It rotates a full 360 degrees with five forward and five reverse settings to be pulled or pushed, making it easy to collect and move material. Can be angled or reversed simply by relocating the index pin. Easily collects debris and smooths lawns in preparation for reseeding and fertilizing. Also put it to work maintaining gravel parking lots, driveways or walking trails. Quickly get rid of unwanted surface debris, including rocks, roots, hay, weeds, leaves and small tree limbs. Angle the 3-point rake to pull debris off to the side, straighten it to pull debris into a pile or reverse it to push debris piles out of the way.

60 in - 84 in Width
272 lbs - 287 lbs Operating Weight
Compatibility

Works With These Bobcat Machines

Compact Tractors

CT2025 CT2035 CT2040 CT2535 CT2540 CT4045 CT4050 CT4058 CT4545 CT4558 CT5545 CT5550 CT5555 CT5558

Sub-Compact Tractors

CT1021 CT1025

Toolcat Utility Work Machines

UW53

Utility Tractors

UT6066 UT6566 UT6573
How It Works

How the Bobcat Tractor Tine Rake Works

The tine rake implement easily collects debris and smooths lawns in preparation for reseeding and fertilizing. Or put it to work maintaining gravel parking lots, driveways or walking trails on your property.

This compact tractor implement is ideal for smoothing, raking or contouring soil surfaces in preparation for planting or seeding. You can quickly get rid of unwanted surface debris, including rocks, roots, hay, weeds, leaves and small tree limbs. Angle the 3-point rake to pull debris off to the side, straighten it to pull debris into a pile or reverse it to push debris piles out of the way.

Specifications

Bobcat Tractor Tine Rake Specs

** Listed specs are for reference. Actual specs may vary by model and configuration. **

Width 60 in - 84 in
Operating Weight 272 lbs - 287 lbs
Why Choose the Bobcat Tractor Tine Rake

Bobcat Tractor Tine Rake Features

Rotates and Reverses

The 3-point rake rotates a full 360 degrees, with five forward and five reverse settings to be pulled or pushed.

Four Widths Available

The tine rake implement is available in four widths: 60-inch, 72-inch, 84-inch, and 96-inch models.

Replaceable Tines

High-carbon curved tines withstand wear and tear and can be replaced to increase the life of the implement.

Category 1, 3-Point Hitch

A 3-point hitch is used to attach your rear-mounted tine rake implement. An adjustable top link is centered above two lower link arms, comprising the three points. The tine rake implement quickly and easily attaches with connecting pins at each point.

Corrosion-Resistant Powder-Coat Finish

The tine rake implement is protected by a durable, powder-coat finish for extra-long life in the elements.
