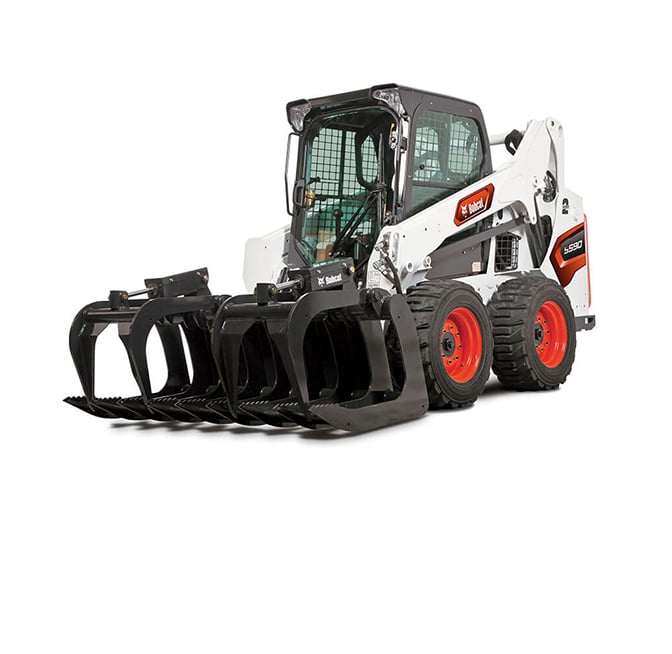

Bobcat Grapple – GP, 32″ Attachment

Additional holding ability to bite down on even the loosest materials. Get close the bucket or fork close to fences, stall walls or other objects for maximum material moving. Choose from a fork and grapple, or bucket and grapple to handle a wide variety of farm and ranch jobs. Forged teeth provide exceptional strength with low weight.

Compatible With:

Loaders

Bobcat Grapple – GP, 32″ Attachment

Let's Get Started

"*" indicates required fields

This field is hidden when viewing the form
Newsletter Signup
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.

Key Specifications

Operating Weight 157 lb
Length 31.6 in
Width 35.1 in
Height 28.8 in
Number of Fork Teeth (Factory) 3
Number of Fork Teeth (Possible) 5
Grapple Width 32 in
Number of Grapple Tines 3
Open Height 41.7 in
Open Length 35.6 in
Closed Height 28.8 in
Closed Length 31.6 in

Key Features

Curved Teeth The curved teeth help pull materials into the grapple, scooping up even the loosest material. Also, teeth are replaceable for added uptime protection.
Forged Teeth The forged teeth provide exceptional strength with low weight, allowing for more carrying capacity.
Provisions for Additional Teeth With more teeth, it’s easier to handle smaller materials.
