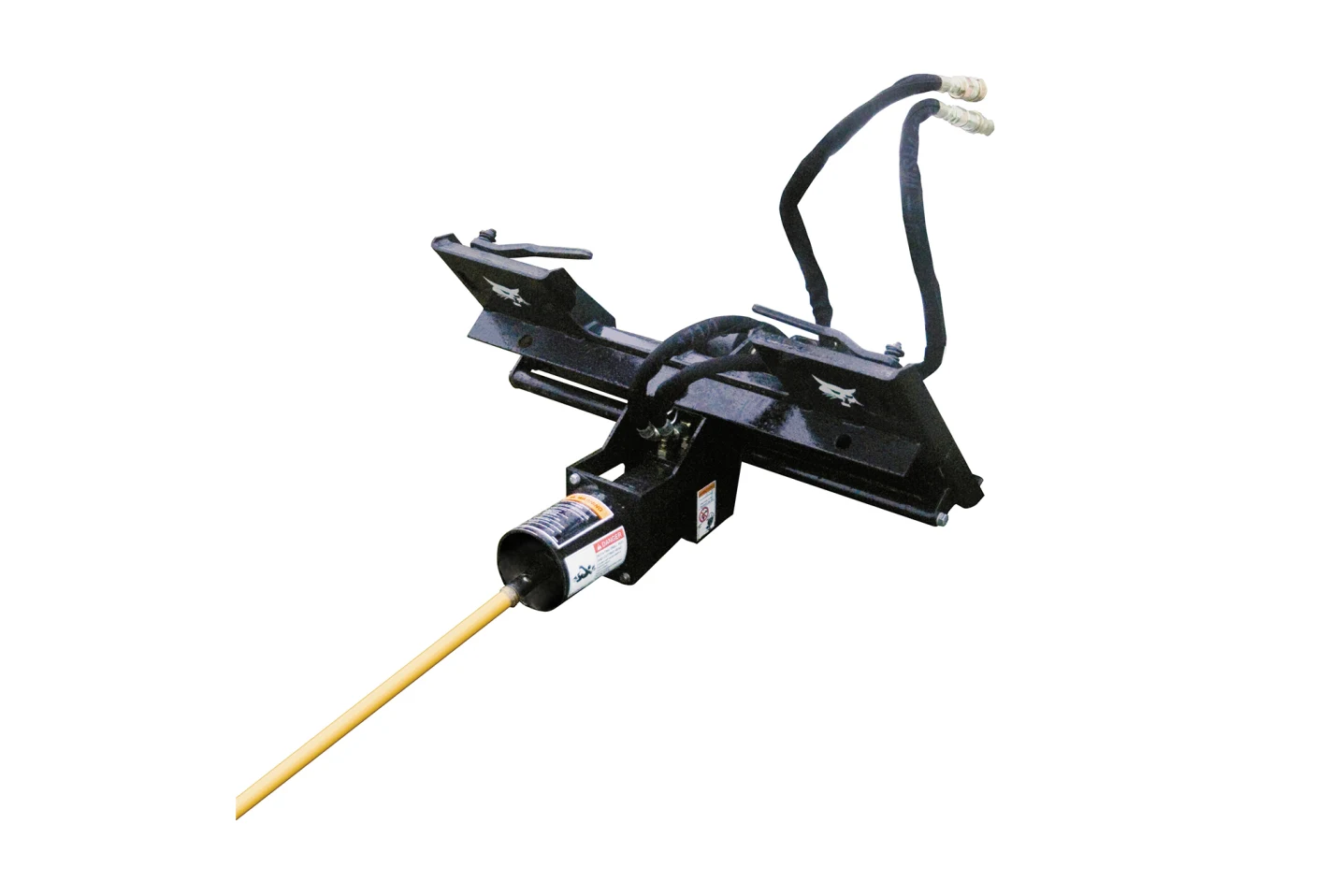

Bobcat Boring Unit Attachment
- Easily install underground cables and flexible pipes with little or no damage to roads, sidewalks or other existing structures
- The hydraulically powered attachment bores horizontally to accommodate pipe or cable up to 4 inches in diameter
- Boring unit’s drive head can be operated from the center or either side of the loader for greater versatility near buildings and other obstacles
Works With These Bobcat Machines
Mini Track Loaders
Skid-Steer Loaders
Small Articulated Loaders
How the Bobcat Boring Unit Attachment Works
The loader’s auxiliary hydraulics power a motor that drives a screw-type boring bit through the ground as the machine is driven forward. The ground is compacted to create a tunnel under the driveway or sidewalk. When the bit reaches the other side, a reaming bit is installed. The loader is backed up and the rotating reaming bit further compacts the soil as it pulls the service through the enlarged tunnel.
This unit helps to easily install underground cables and flexible pipes with little or no damage to existing roads, sidewalks or other existing structures. The hydraulically powered attachment bores horizontally to accommodate pipe or cable up to 4” in diameter. After boring, the attachment works to pull the pipe or cable through the hole.
The boring unit frame allows the drive head to be mounted on the front of the loader in three positions: on the center, right or left side. This allows the attachment to be positioned directly next to obstacles, such as buildings, and bore exactly were the operator desires.
Bobcat Boring Unit Attachment Specs
** Listed specs are for reference. Actual specs may vary by model and configuration. **
Bobcat Boring Unit Attachment Features
