Bobcat Automatic Grade Control Sonic Slope
- Bobcat® automatic grading solutions deliver more accurate grading results with less time and labor.
- Increase efficiency and reduce fatigue without having to focus on the blade position.
- Near-perfect accuracy eliminates the need for a crew to continually check grade.
- With accuracies better than +/- ¼-inch, automatic grade control systems can save on expensive finishes such as concrete.
Works With These Bobcat Machines
Compact Track Loaders
Skid-Steer Loaders
How the Bobcat Automatic Grade Control Sonic Slope Works

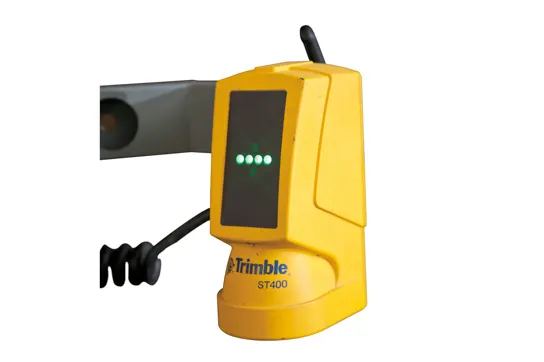

The operator places the sonic tracer over the top of the object he wishes to use as a reference and sets the blade depth as needed.
For example: An operator prepares the sub grade for a road in which the curb and gutter has already been poured. The operator sets the sonic tracer above the gutter and sets the cutting edge of the moldboard 6 in. below that point. The operator then “zeros” the sonic tracer using the Deluxe Instrumentation Panel. Since roads are typically crowned, the operator enters a 1% slope using the Deluxe Instrumentation Panel. After clicking a button on the loader control handles, the system is in automatic mode and the operator starts driving the machine. The blade maintains a depth of 6 in. below the curb at a 1% slope going up toward the center of the road.
Bobcat Automatic Grade Control Sonic Slope Features
