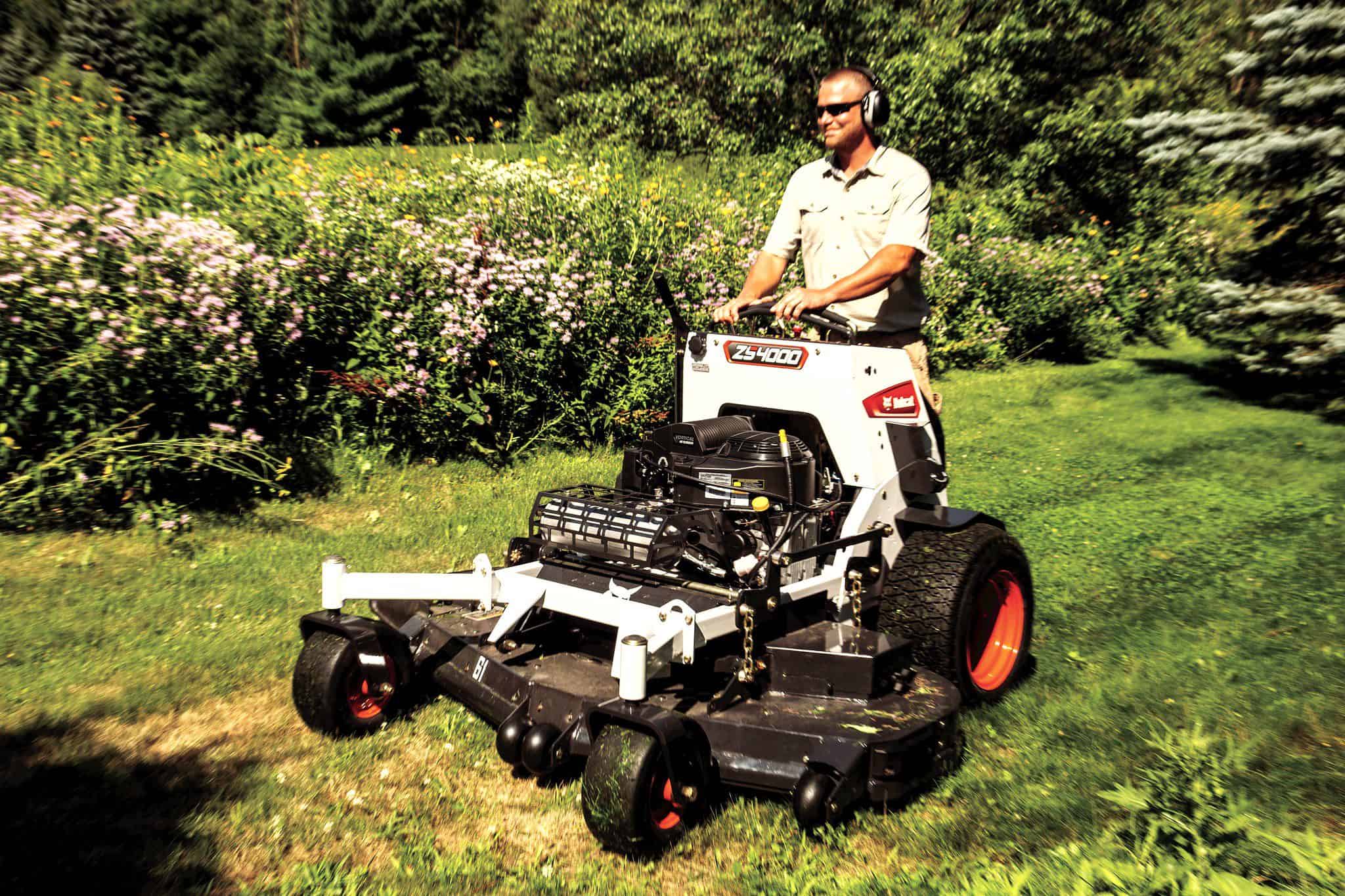

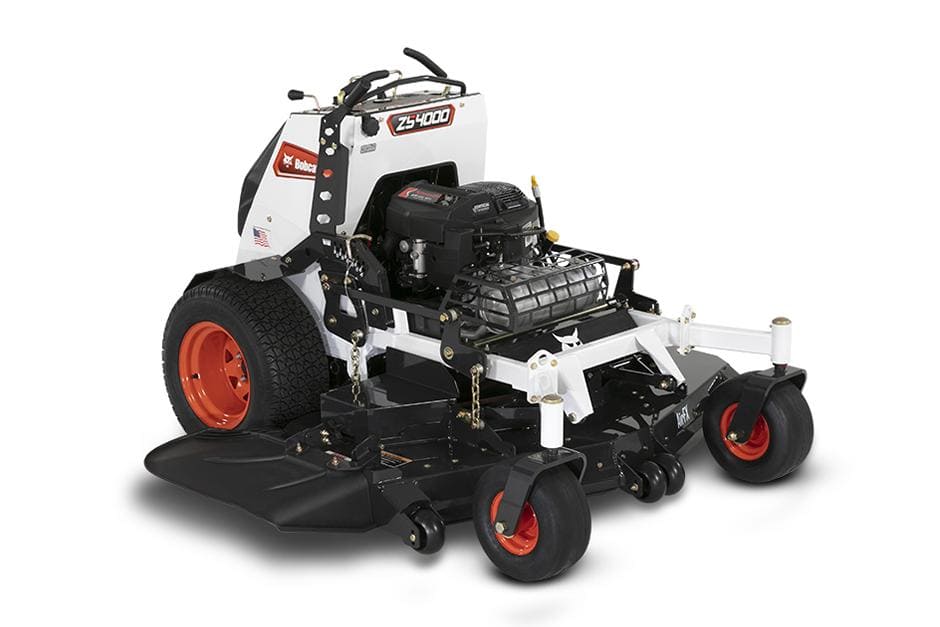

Bobcat ZS4000 Stand-On Mower 36″

Stability. Agility. Profitability. With a compact size, extra ground clearance and large drive tires, the ZS4000 gets over and around obstacles and on to the next job.

19

Horsepower

Kaw FX600V

Engine

36 in

Deck Size

Advertised Price Disclaimer: The displayed price is the Minimum Advertised Price (MAP) and may not reflect the final sales price. Current national promotions have been deducted from the MAP, but the actual sales price may vary depending on selected options or accessories. Please consult with our sales team for a personalized quote.

Bobcat ZS4000 Stand-On Mower 36″

Let's Get Started

"*" indicates required fields

This field is hidden when viewing the form
Newsletter Signup
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.

Bobcat ZS4000 Stand-On Mower 36″ Specs & Add-Ons

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Key Specifications

Mower Deck DuraDeck™ Cutting System
Width 36 in
Cutting Height 1.5-4.5
Engine Model Kaw FX600V
Displacement 603 cm³
Transmission type HG ZT-2800 Hydrostatic Transaxles
Pump Displacement 10 cm³
Blade Tip Speed 17,600 ft/min
Discharge Chute Flexible Molded Polymer

Performance

Weight 800 lb
Transmission type HG ZT-3400 Hydrostatic Transaxles
Pump Displacement 10 cm³
Oil Capacity 4 qt_liq_us
Forward Speed 9 mph
Reverse Speed 3.5 mph
Charging System 15 A
Clutch 125 ft·lbf
Engine Model Kaw FX600V
Displacement 603 cm³
Fuel Capacity 5 gal

Dimensions

Front/Rear Welded 7-gauge Steel; 1.5 x 2.5 in Steel Tubing
Length 64 in
Drive Wheel 20 x 8.0-10
Front Caster Wheel Size 11 x 6.0-5
Caster Arm Attachment Bolt-On
Seat Operator Pad - tethered, removable
Fore-Aft Adjust Flip Up and Latch

Bobcat ZS4000 Stand-On Mower 36″ Features

More Vacuum. Better Airflow. Cleaner Cut.

More Vacuum. Better Airflow. Cleaner Cut.

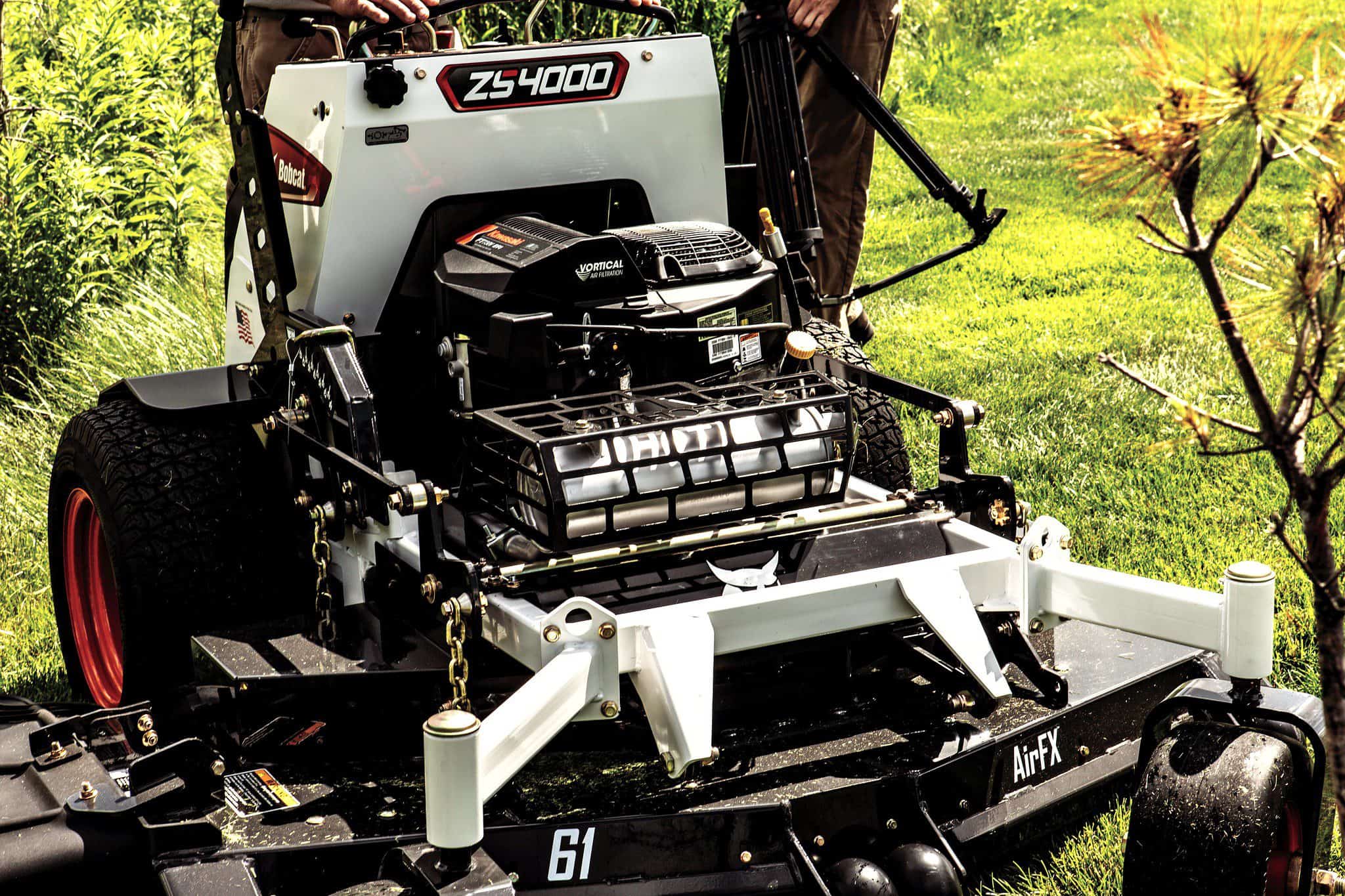

A full-scale deck system is designed to keep you ahead of the competition. The AirFX deck offers a deeper profile for improved vacuum lift and newly engineered, bolt-on, replaceable Air-Gap baffles for more efficient airflow and enhanced serviceability. All of this along with innovative bullnose design allows grass to stand-up before it reaches the mower blades so you can cut them down to size.

Comfort and Control

Comfort and Control

A deluxe suspension seat, almond-shaped handles and smooth, responsive controls provide increased comfort and reduced vibration. Intuitive operation is assured by ergonomic design and placement of deck hand-lift assist, foot pedal and fuel tank controls.

Easy To Maintain

Easy To Maintain

A rotating bumper gives fast access to internal components making tune-ups more efficient and comes with the additional hitch system.

Built To Last

Built To Last

Larger, robust, ultra-stable, dual-tubed frame provides increased durability for traversing even the toughest of turfs.

 Precision In Every Detail

 Precision In Every Detail

An innovative, tool-free control design offers smooth, dampened controls with tool-free, adjustable tracking.

High-Performance Engine

High-Performance Engine

Dependable engine performance, built for the pros and those who want to mow like them, with Kawasaki® series engine and Briggs & Stratton® EFI options.

Zero-T Drive Tires

Zero-T Drive Tires

Each zero-turn mower is equipped with large, heavy-duty, zero-turn drive tires that provide the maneuverability you need to mow around any obstacle that stands in your way.

Rugged Fuel Tanks

Rugged Fuel Tanks

Get the job done without having to worry about refueling with rugged, roto-molded, impact-resistant fuel tanks with remarkable capacity.
