2000 Platform Tractors

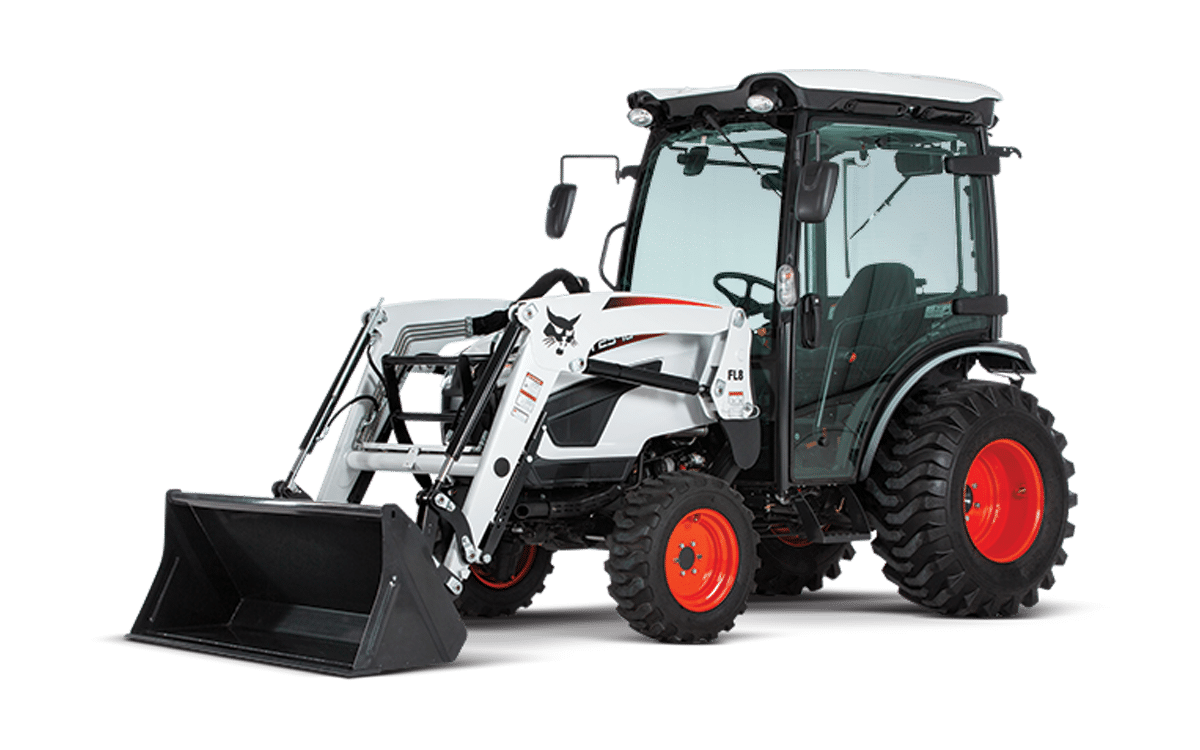

Bobcat CT2540 Compact Tractor

Cash Price includes FREE Front-End Loader

This 40-hp compact tractor offers performance and comfort with hydrostatic transmission and factory-installed heated and air-conditioned enclosed cab.

The needed power for big jobs combined with maneuverability for working in tight areas
Rear PTO standard/mid-PTO optional
Platform integrated joystick lever for easy front-end loader work
Category 1 three-point hitch

Get power and comfort with the CT2540 compact tractor’s 38-hp engine and fully enclosed cab for working on hot summer days and in harsh, cold weather. From moving snow to planting a food plot or digging holes for trees and fences, this tractor can get more done with its Category 1 three-point hitch for use with a variety of implements.

37.6 hp Engine Horsepower

31.9 hp PTO Horsepower

3,585 lb Operating Weight

Advertised Price Disclaimer: Any displayed prices are the Minimum Advertised Price (MAP) and may not reflect the final sales price. Current national promotions have been deducted from the MAP, but the actual sales price may vary depending on selected options or accessories. Please consult with our sales team for a personalized quote. Financing only available for 0% Down and Approved Credit.

Call Your Local Bobcat of Huntsville Location For Unit Availability.

Bobcat CT2540 Compact Tractor Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options. **

Horsepower 37.6 hp

Lift Capacity at 24" behind Lift Point 1,631 lb

PTO HP 31.9 hp

Transmission Type Infinite, 3 Range Hydrostatic

Width 64 in

Turning Radius 8' 9"

Wheelbase 5' 5"

Fuel Tank 9 gal

Implement Hydraulic Flow 6.9 gal/min

Total Hydraulic Flow 11.4 gal/min

Steering Hydraulic Flow 4.5 gal/min

Brake Type Wet Multi Disc

Transmission Type Infinite, 3 Range Hydrostatic

Operating Weight 3,585 lb

Travel Speed 14 mph

Travel Speed - Reverse 12.5 mph

3-Point Hitch Category 1

3-pt Lift Control Type Hydraulic Position Control System

Lift Capacity at 24" behind Lift Point 1,631 lb

Rear PTO System Independent

Rear PTO - RPM 540

PTO HP 31.9 hp

Mid PTO - RPM 1988

Emissions Tier (EPA) Tier 4

Horsepower 37.6 hp

Displacement 111 in³

Number of Cylinders 3

Gross HP 37.6 hp

Engine Model 3F-TM(H)4

Length 120.9 in

Width 64 in

Height 91 in

Ground Clearance 12.3 in

Turning Radius 8' 9"

Wheelbase 5' 5"

Front Tire Size Front Industrial (AG, Turf) 25X8.5-14 (7-16, 27X8.5-15)

Rear Tire Size Rear Industrial (AG, Turf) 15-19.5 (11.2-24, 41X14-20)

Loader Lift Height 8' 4"

Lift Capacity @ 500mm ahead of bkt pivot 1,389 lb

Bucket Width 5' 0"

Bobcat CT2540 Compact Tractor Features

Enclosed Cab

Choose a model with a factory-installed, radio-ready enclosed tractor cab and enjoy a long list of deluxe features. Stay out of the weather, work longer days and accomplish more around your small farm or property all year long. Mow in comfort in the heat of summer or move snow on a cold winter morning. Heat, air conditioning, panoramic visibility and other creature comforts come standard with the cab.

Transmission Options

The 2000 platform lineup offers hydrostatic (3-Range HST) and manual 9x3 shift transmission options based on the model you choose. For maximum ease of use and fast simple direction changes, the hydrostatic option is effective for front-end loader work, mowing and maneuvering. The economical manual option works well for jobs that require constant speed, such as mowing, tilling or spraying. It’s a good choice for PTO-heavy work.

Standard Features

Get all the standard features available on all Bobcat tractor models – including four-wheel drive, high ground speeds, rear PTO and Category 1 three-point hitch and a low-noise, low-vibration engine. Plus step up to more standard features for easier operation including: Power steering and an integrated loader joystick lever Rear-mounted three-point hitch control lever Durable metal hood and convenient one-side maintenance
