1000 Platform Tractors

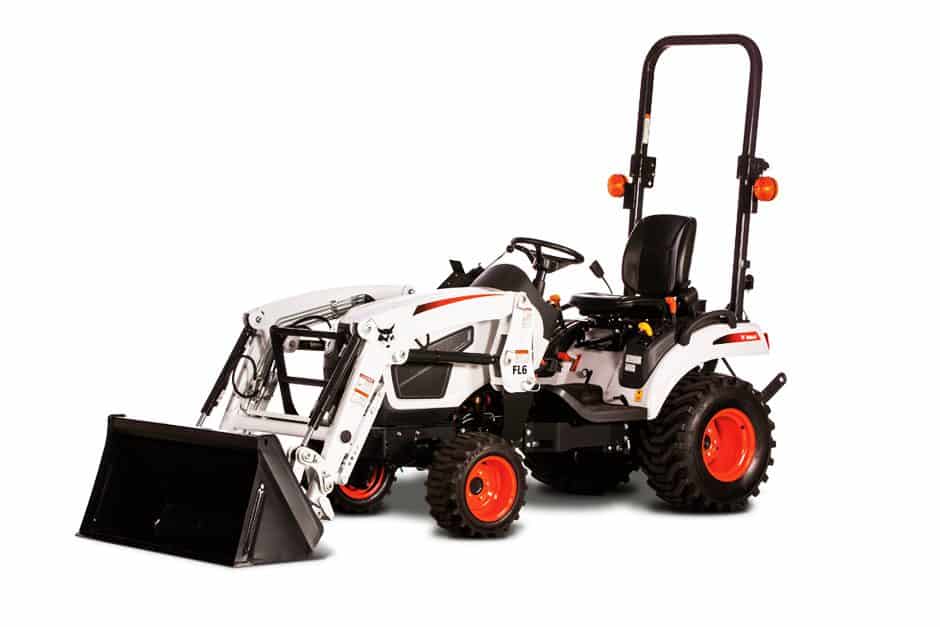

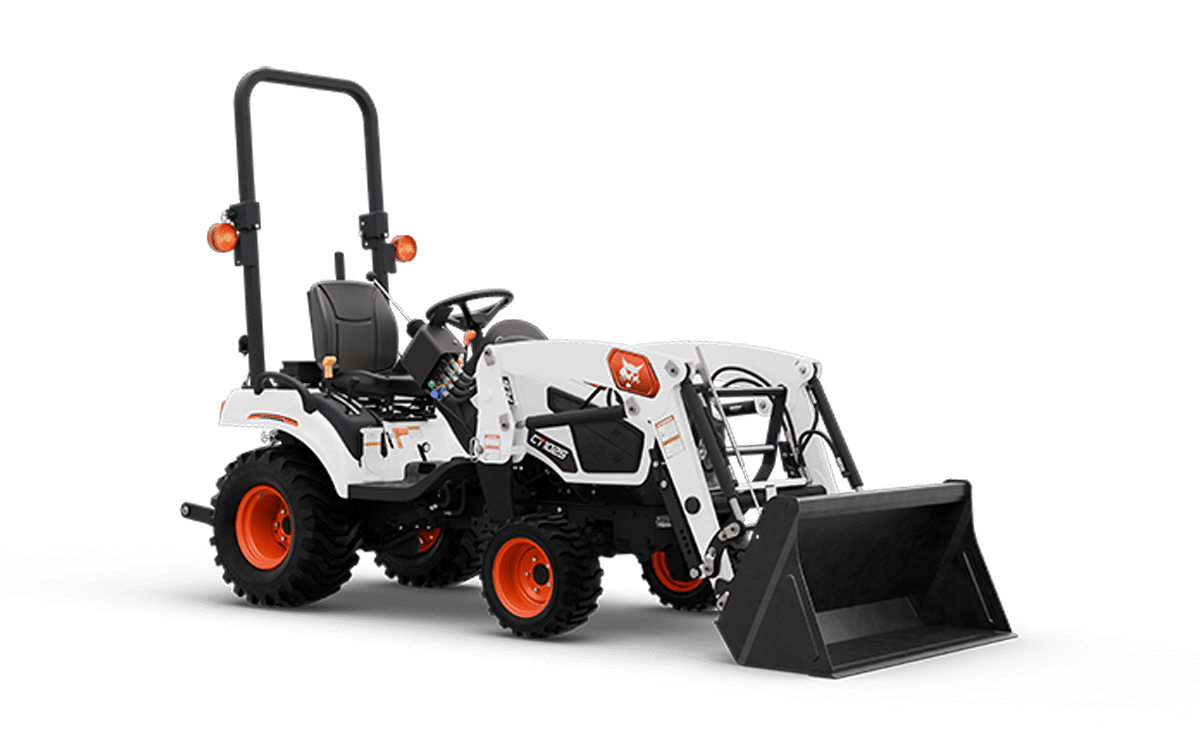

Bobcat CT1025 Sub-Compact Tractor

Cash Price includes FREE Front-End Loader

Browse specs and more for the Bobcat CT1025 Sub-Compact Tractor - Bobcat of Huntsville

This 25-hp sub-compact tractor offers four-wheel drive and clutch-free 2-range hydrostatic transmission.

  • Compact 46-inch width
  • Limited Category 1 three-point hitch for using implements
  • Rear and mid-PTO

Get added horsepower for operating a variety of attachments and implements – without sacrificing the compact size and maneuverability to mow and complete light-duty projects on your property.  Mid-PTO provides the option of combining two tools on one machine – one in the back and either one in the front or a mid-mount mower.

Do more with one machine. The rear PTO and Limited Category 1 three-point hitch allow the versatility to use both drag-behind and PTO-powered implements. Engage four-wheel drive for hard-working traction when your work demands it.

24.5 hp Engine Horsepower
18.8 hp PTO Horsepower
1,521 lb Operating Weight

Advertised Price Disclaimer: Any displayed prices are the Minimum Advertised Price (MAP) and may not reflect the final sales price. Current national promotions have been deducted from the MAP, but the actual sales price may vary depending on selected options or accessories. Please consult with our sales team for a personalized quote. Financing only available for 0% Down and Approved Credit.

Call Your Local Bobcat of Huntsville Location For Unit Availability.

Specifications

Bobcat CT1025 Sub-Compact Tractor Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options. **

Horsepower 24.5 hp
Lift Capacity at 24" behind Lift Point 700 lb
PTO HP 18.8 hp
Transmission Type Infinite, 2 Range Hydrostatic
Width 46 in
Turning Radius 8' 3"
Wheelbase 4' 7"
Fuel Tank 6.7 gal
Implement Hydraulic Flow 4.6 gal/min
Total Hydraulic Flow 6.4 gal/min
Steering Hydraulic Flow 1.8 gal/min
Brake Type Wet Multi Disc
Transmission Type Infinite, 2 Range Hydrostatic
Operating Weight 1,521 lb
Travel Speed 11 mph
Travel Speed - Reverse 7.5 mph
3-Point Hitch Category 1
3-pt Lift Control Type Hydraulic Position Control System
Lift Capacity at 24" behind Lift Point 700 lb
Rear PTO System Independent
Rear PTO - RPM 540
PTO HP 18.8 hp
Mid PTO - RPM 2200
Emissions Tier (EPA) Tier 4
Horsepower 24.5 hp
Displacement 61 in³
Number of Cylinders 3
Gross HP 24.5 hp
Engine Model 3C100LFH-U1
Length 99.3 in
Width 46 in
Height 87.6 in
Ground Clearance 6.3 in
Turning Radius 8' 3"
Wheelbase 4' 7"
Front Tire Size Front Industrial (AG, Turf) 18X8.5-10 (18X8.5-10,18X8.5-10 )
Rear Tire Size Rear Industrial (AG, Turf) 26X12-12 (26X12-12,26X12-12 )
Why Choose the Bobcat CT1025 Sub-Compact Tractor

Bobcat CT1025 Sub-Compact Tractor Features

Material Moving

Bobcat compact tractors are ideal for material handling on your acreage or small farm, featuring a versatile front-end loader for digging, loading, or hauling materials, a bucket leveling indicator to keep loads steady and prevent spills, and an angle blade for leveling, backfilling, grading, and snow removal.

Landscaping

Bobcat compact tractors are a great addition to your landscaping equipment, with a backhoe implement that’s perfect for projects like building retaining walls or trenching for irrigation lines, and a mid-mount mower that transforms your tractor into a highly maneuverable mowing powerhouse.

Agriculture

Keep ahead of the heavy workload on your farm or ranch with Bobcat compact tractors, using the tiller implement to efficiently prepare small plots of soil for planting and the tine rake to quickly collect unwanted surface debris while smoothing the ground for reseeding and fertilizing.

Simple Controls

Operator-friendly controls help you do more with less effort, with power steering on certain models for nearly effortless maneuverability, steering wheel tilt for a comfortable operating position, and optional cruise control on HST models (CT2025 and above).

Linked Pedal Lever

With the linked pedal lever option, operation feels much like driving a car, increasing engine rpm as you engage the travel pedal, providing intuitive front-end loader control, and available on models with hydrostatic or electronic hydrostatic transmission.

Effortless Operation

Do more work with less effort thanks to the simple-to-use features and high-powered performance of Bobcat compact tractors, including a hydraulic pump that delivers smooth, easy control during heavy-duty tasks and an external 3-point control lever that makes raising and lowering lift arms for implement hookup quick and convenient.

Manual or Hydrostatic Transmission

Get the right balance of ease of use and work performance with your choice of transmission types across the Bobcat tractor lineup, including a three-range hydrostatic transmission that operates much like an automobile and a manual-shift transmission that offers an economical, reliable option with nine forward gears and three reverse gears.

Maximum Maneuverability

The compact size and simple controls of Bobcat compact tractors deliver labor-saving horsepower to every corner of your property, with a tight turning radius as small as 8 feet (depending on the model), high ground clearance for better performance on uneven or muddy terrain, and easy-to-engage four-wheel drive whenever the job demands it.
