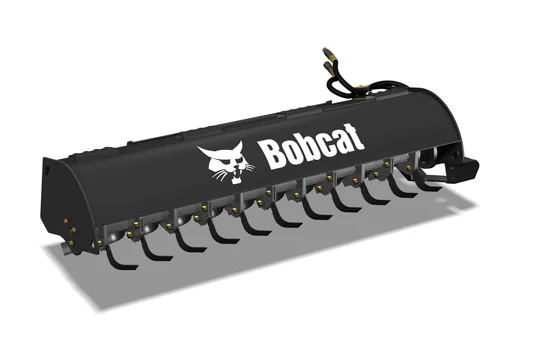

Bobcat Rotary Tiller – 76″ Attachment
Built for easy and efficient soil preparation, the tiller attachment quickly turns a backyard plot into a soil bed. Tear through clumps and hardened materials with the replaceable, double-edge tines. Bi-directional operation for top-cutting and under-cutting in either direction. Offset mounting allows for tilling next to sidewalks and buildings.
Compatible With:
LoadersUtility Work Machines
Key Specifications
Operating Weight 749 lb
Length 32.9 in
Width 84.4 in
Height 24.2 in
Working Depth 6" maximum
Drive Direct Drive
Tine Rotation Bi-rotational
Working Width 75.4 in
Travel Direction Foward/Reverse
Tines 44
Flow Range Min 17 gal/min
Flow Range Max 40 gal/min
Key Features
Adjustable Skid Shoes The attachments adjustable skid shoes deliver depth control for more precise tilling operation.
Bi-Directional Rotation With bi-directional rotation, operators have the option of top-cutting and under-cutting when tilling in either direction, maximizing attachment versatility and increasing operating capabilities.
Replaceable Tines Hardened for maximum soil penetration, the double-edge tines break through clumps and tear through materials to deliver loosened soil for ground preparation.
Offset Mounting Offset mounting accommodates tilling next to sidewalks, curbs, and buildings, increasing the jobsite capabilities of the tiller attachment.
Direct-Drive, Hydraulic Motor The direct-drive motor delivers necessary operating power while reducing overall maintenance costs, extending the life of the attachment and eliminating the need for high wear items such as gear boxes, chains, sprockets and sheer pins.
Bob-Tach® Mounting System The Bob-Tach® mounting system turns any Bobcat® loader into a multi-job machine with a tight-fit attachment hook-up. Fast and easy attachment changes mean spending less time on maintenance and more time on the job.
