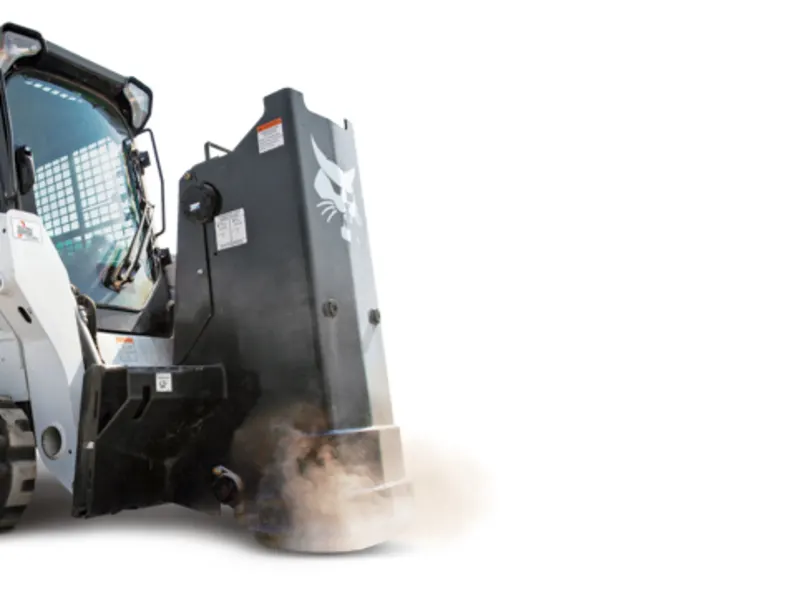

Bobcat Drop Hammer Attachment
- Breaks and demolishes concrete
- Delivers more than 3,600-foot pounds of impact energy combined with a fast cycle time of 20 blows per minute
- Fractures the material below the surface, leaving the surface free of jagged debris
- Allows three seconds to reposition and reset the loader between cycles
- Generates little vibration or noise compared to standard hydraulic breakers, meaning less wear on the machine and less noise for operator and bystanders
Compatible With:
Compact Track Loaders - T550, T595, T64, T650, T66, T740, T76, T770, T86
Skid-Steer Loaders - S510, S590, S64, S650, S66, S76, S770, S86
How The Bobcat Drop Hammer Attachment Works
The drop hammer features a chain mechanism with a catch. The catch grabs the weight and raises it up. When the chain rotates over the top, the catch falls and releases the weight, dropping the hammer onto the material to be demolished.
Bobcat Drop Hammer Attachment Specs
Length 29 in
Weight of Hammer 1140 lbs
Height (hammer fully raised) 74 in
Hammer Stroke 38 in
Impact Energy Class 3600 ft-lbs.
Stroke Rate per Minute 20
Max. Concrete Thickness 18 in
Width 45.2 in
Height 54.9 in
Bobcat Drop Hammer Attachment Features
Bobcat Drop Hammer Attachment
