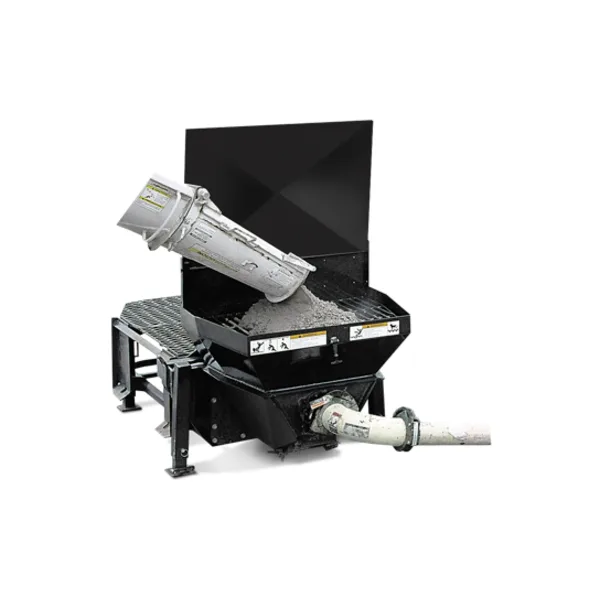

Bobcat Concrete Pump Attachment
- Simplifies concrete pouring in hard-to-reach locations
- Pumps concrete as far as 250 feet horizontally and up to two stories vertically
- Place up to 18 cubic yards of concrete per hour with a standard, hydraulic-flow loader
- High-flow loaders can place up to 28 cubic yards of concrete per hour
6 in
Concrete Cylinder Diameter
102.9 in
Length
24 in
Concrete Cylinder Stroke
Compatibility
Works With These Bobcat Machines
Compact Track Loaders
T64-2
T66-2
T76-2
T86-2
T595
T650
T770
Skid-Steer Loaders
S64-2
S66-2
S76-2
S86-2
S590
S650
S770
How It Works
How the Bobcat Concrete Pump Attachment Works
Attach your Bobcat® loader to either side of the concrete pump and position the unit where you need it. Then connect the hoses, feed the concrete mix into the hopper and pump.
Specifications
Bobcat Concrete Pump Attachment Specs
** Listed specs are for reference. Actual specs may vary by model and configuration. **
Concrete Cylinder Diameter
6 in
Length
102.9 in
Concrete Cylinder Stroke
24 in
Maximum Aggregate Size
1.5 in
Maximum Concrete Pressure
750 psi
Swing Tube Diameter
5 in
Swing Valve Cylinder Diameter
3 in
Swing Valve Cylinder Stroke
6 in
Operating Weight
2200 lbs
Width
47.9 in
Pumping Cylinder Diameter
3 in
Vertical Pumping Height
50 ft
Horizontal Pumping Distance
250 ft
Hopper Capacity
10 cubic ft
Height
54.9 in
Why Choose the Bobcat Concrete Pump Attachment
Bobcat Concrete Pump Attachment Features
