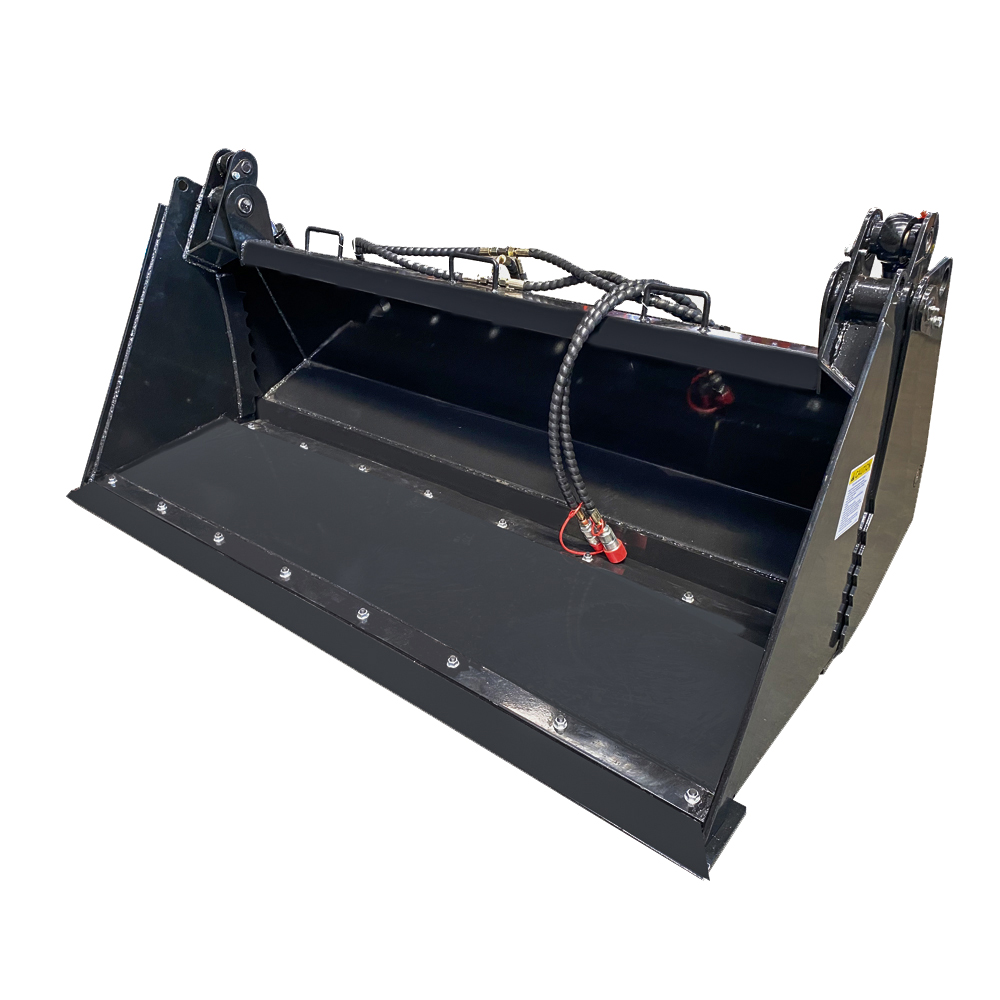

Bobcat Bucket – Combination, 74″ Attachment

This four-in-one attachment can be used as a bucket for loading, carrying and dumping; as a grapple for handling odd-shaped objects; or for dozing, leveling and spreading material with the clamshell open.

Compatible With:

Loaders

Bobcat Bucket – Combination, 74″ Attachment

Let's Get Started

"*" indicates required fields

This field is hidden when viewing the form
Newsletter Signup
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.

Key Specifications

Operating Weight 898 lb
Length 34.6 in
Width 74.5 in
Height 28.3 in
Number of Teeth 8 Bolt-on
Operating Weight (w/teeth) 956 lb
Operating Weight (w/o teeth) 898 lb
ISO Heaped Capacity 13.4 ft³
ISO Struck Capacity 10 ft³
Predrilled For Bolt-on Edges or Teeth

Key Features

Replaceable Cutting Edges Replace the cutting edges on the rear of the clamshell and dozer (62-inch model and larger only).
Reinforced Bucket Bottom The bottom of the bucket and clamshell are reinforced to improve strength and rigidity.
Interlocking Grapple The interlocking and serrated grapple edges hold objects securely, even heavy and odd-shaped materials.
Bolt-On Cutting Edges The bolt-on cutting edges protect the corners of the bucket. The cutting edges are reversible on the 62-inch model and larger only.
