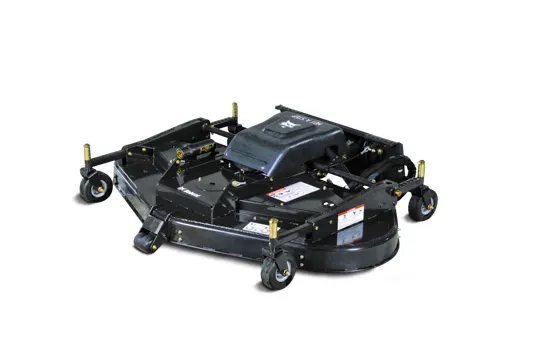

Bobcat Mower Attachment

Browse specs and more for the Bobcat Mower Attachment - Bobcat of Huntsville
  • Mow the roughest terrain into a clean-cut landscape with the mower attachment
  • Front-mount mower is powered by a direct-drive hydraulic motor
  • Three overlapping blades eliminate skips for clean cutting action, discharging cut materials to the rear
  •  Unique frame design allows the mower to oscillate independently to follow uneven terrain and deliver a close, clean cut
  • Ideal for golf courses, landscape contractors, nurseries, hobby farms, municipalities, and large-lot rural homeowners
68 in - 75 in Length
2" to 5.5" in .50" increments Cutting Height Range
15-22 GPM Flow Range

Call Your Local Bobcat of Huntsville Location For Availability.

Compatibility

Works With These Bobcat Machines

Compact Track Loaders

T64-2 T66-2 T76-2 T86-2 T450 T595 T650 T770

Skid-Steer Loaders

S64-2 S66-2 S76-2 S86-2 S450 S590 S650 S770

Small Articulated Loaders

L35

Toolcat Utility Work Machines

UW53 UW56
How It Works

How the Bobcat Mower Attachment Works

The front-mounted unit cuts grass before it’s driven over, allowing excellent working visibility of the area to be mowed. Powered by a direct-drive hydraulic motor, three overlapping blades eliminate skips for clean cutting action, discharging cut materials to the rear. And the unique frame design allows the mower to oscillate independently to follow uneven terrain, delivering a close, clean cut. From mowing roadside ditches to large acreages, the mower attachment is ideal for all mowing.

The mower is the ideal maintenance attachment for golf courses, landscape contractors, nurseries, hobby farms, municipalities, and large-lot rural homeowners.

Specifications

Bobcat Mower Attachment Specs

** Listed specs are for reference. Actual specs may vary by model and configuration. **

Length 68 in - 75 in
Cutting Height Range 2" to 5.5" in .50" increments
Flow Range 15-22 GPM
Number of Blades 3
Shut-off Travel 8.5 in
Cutting Width 71.5 in - 89.5 in
Operating Weight 880 lbs - 990 lbs
Width 76 in - 94 in
Tip Speed @ 22 gpm 16502 ft/min - 16172 ft/min
Height 22 in
Why Choose the Bobcat Mower Attachment

Bobcat Mower Attachment Features

Rear Discharge (Standard)

The rear discharge disperses grass clippings under the carrier and away from buildings, trees and fences.

Mulching and Side-Discharge Kits

Mulching and side-discharge kits are available to easily convert the mower attachment to fit the application.

Anti-Scalping Wheel

The anti-scalping wheel protects the mower blades from damage by touching the ground first when mowing over uneven terrain. Also, it prevents the mower deck from scraping the ground, resulting in longer blade life and consistent cutting height.

Castor Wheels

Combined with the attachment frame, the castor wheels allow the mower to oscillate independently of the loader, providing a floating deck to better follow uneven terrain. Also, can be adjusted for different cutting heights, ranging from 2 inches to 5.5 inches.

Cutting Blades

Designed for mowing efficiency, the mower attachment features three overlapping cutting blades that eliminate skips for even cutting action.

Deck Bracing

The deck bracing improves air and material flow.

Belt-Driven

For increased uptime protection, the hydraulic motor powers a single V-belt, eliminating shear pins and related downtime.

Front Mount

The mower attachment mounts to the front of the carrier for maximum working area visibility.

Safety Shut-Off

The safety shut-off is incorporated into the attachment frame. If the mower exceeds 8.5 inches of vertical travel, the safety shut-off turns the blade rotation off.

Blade Mounting

Dual mounting bolts make blade replacement easy.
